Shut down AC power to the dispenser when fluid is dectected

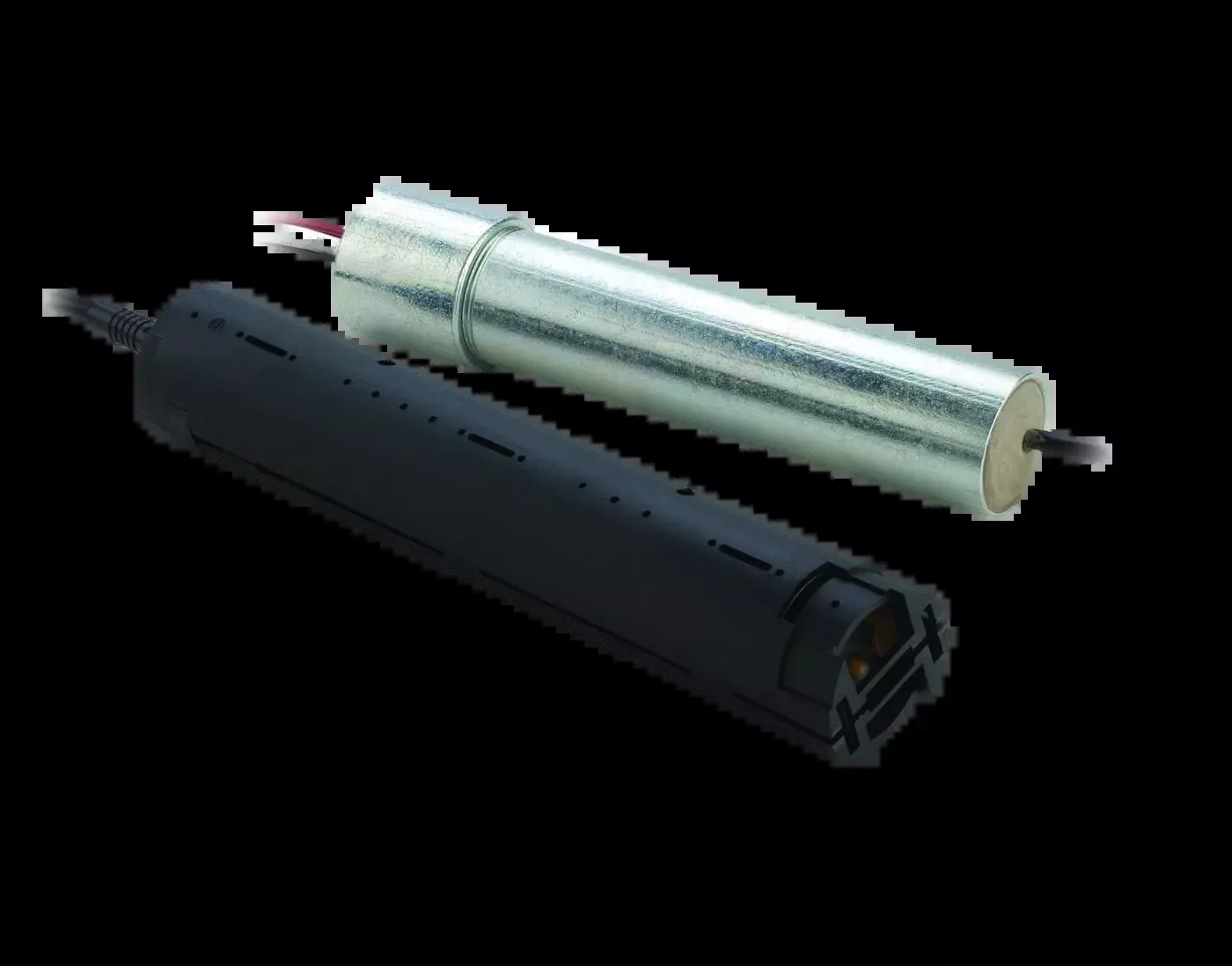

The Non-Discriminating Standalone Dispenser Pan Sensors immediately shut down AC power to the dispenser when fluid is detected in the dispenser pan. Fail-safe design features eliminate the possibility of missing a leak condition. Easily installed in most dispenser pans and dispenser sumps, the Standalone Sensors function with most manufacturers’ dispensers.
Accurate and reliable, Standalone Dispenser Pan Sensors withstand the harshest environments.
-
Shuts down dispenser when it detects 1-1/2” of liquid at the base of the sensor
-
Latching alarm circuitry ensures dispenser can’t be restarted until hazardous condition has been corrected
-
Connects directly to dispenser wiring
-
Controls most manufacturer’s dispensers
Specifications
|
Fuel Compatibility |
Gas, Diesel, Kerosene, Jet Fuel, Aviation Gas, E15, Bio-Diesel 20, Green Diesel, Waste Oil, Motor Oil |
|
Alarm Notification |
Normal: Sensor in Normal State – No liquid detected |
|
Liquid Detected: Remove power to the dispenser |
|
|
Sensor Out: Remove power to the dispenser |
|
|
Sensor Dimensions |
11.6” (29.4cm) high, 2.2”(5.6cm) in diameter |
|
Control Interface Dimensions |
9.4” (23.9cm) high, 2.2” (5.6cm) in diameter |
|
Operating Principle |
Reed Switch /Float |
|
Operating Temp |
-32 to +140°F (0 to +60°C) |
|
Cable Length |
5 Feet |
