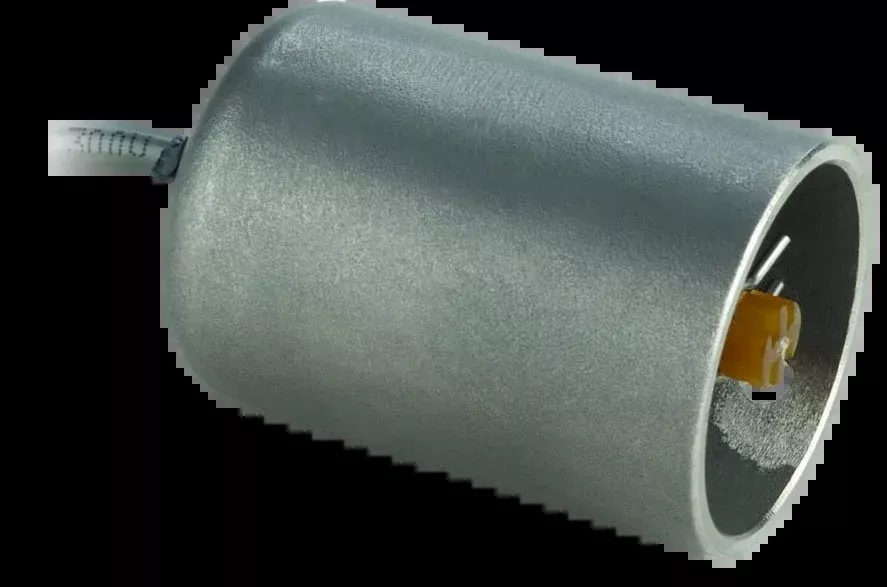

Constructed of non-corrosive stainless steel for monitoring of steel tank interstitial in high alcohol alternative fluids such as E85.
-
Can be used in the annulus of steel tanks with a sensor riser pipe 1.5″ I.D. or greater
-
Only two wires are required to connect the sensor to a TLS or ILS system
Specifications
|
Fuel Compatibility |
Gas, Diesel, Kerosene, Jet Fuel, Aviation Gas, E15, E85, E100, Bio-Diesel 20, Bio-Diesel 100, Green Diesel, Waste Oil, Motor Oil |
|
Alarm Notification |
Normal: Sensor in Normal State – No liquid detected |
|
Fuel Alarm: Water or Fuel detected |
|
|
Sensor Out: Sensor not communicating to ATG Console |
|
|
Operating Principle |
Reed switch / float |
|
Product Activation Height |
Fuel or Water – 1.1” (2.8cm) |
|
Operating Temp |
-4 to +140°F (-20 to +60°C) |
|
Dimensions |
2.5” (6.4cm) high, 1.5” (3.8cm) diameter |
|
Standard Cable |
15ft (4.5m) |
