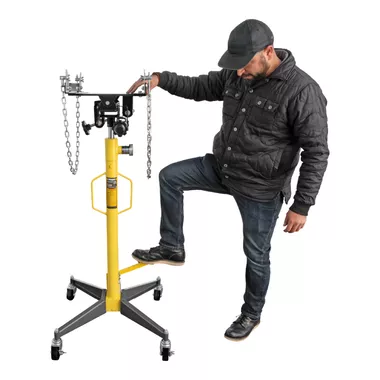

Ranger RTJ-1100 1/2-Ton Capacity Transmission Jack
Compact, upright transmission jack with a maximum lift capacity of 1,100 lbs. Rugged construction, 24-in. base and overload safety, this jack can never going drop unexpectedly due to overload or hydraulic failure.
Features
- Foot-operated pump.
- Hand control release valve.
- Alloy-plated single-stage ram.
- Heavy steel construction for maximum durability.
- Heavy-duty steel swivel casters.
- Heavy-duty chain anchors.
- Sealed hydraulics prevents contamination.
- Extra wide base with swivel casters.
- Built-in safety overload valve.
Specifications
| Lifting Capacity | 1,100 lbs. (499 kg) |
| Lowered Height | 45″ (1,143 mm) |
| Raised Height | 72″ (1,829 mm) |
| Base Dimensions | 24″ x 24″ (610 mm x 610 mm) |
| Shipping Weight | 126 lbs. (57 kg) |
| Shipping Dimensions | 50″ x 13″ x 9″ (1,282 mm x 330 mm x 228 mm) |
