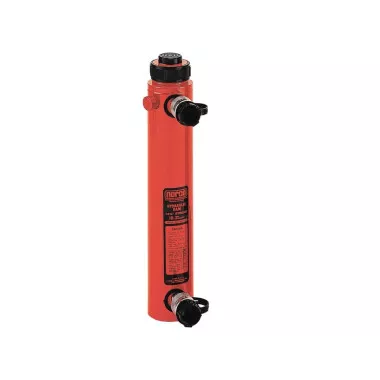

Norco 930008 30 Ton Ram, 8-1/4″ Stroke, Double Acting
*Note:Model not shown has same basic construction as model pictured.
Intended Use
For many applications including shop, agricultural, automotive / truck service needs and construction maintenance applications where lifting, pushing, pulling, bending or holding may be required.
Intended Use
- High flow quick connecting coupler and dust cap included on all models.
- Unique piston and cylinder bearings absorb eccentric load stresses in order to protect the cylinder against abrasion, over-extending and jamming.
- Nickel plating on most cylinder pistons inhibits rusting.
- Baked enamel exterior finish for increased corrosion resistance.
- Polyurethane seals and wipers provide high cycle life.
- Heavy duty return springs provide consistent performance.
- Cylinders comply with ANSI B 30.1.
- Ability to pull as well as push under power.
- IMPORTANT: Double-acting cylinders can only be used with the 4-way valve hand pump model 925014.
- Built-in safety valve prevents over-pressurization.
Dimensions
| Stroke | 8.25″ |
| Minimum Height | 15.25″ |
| Maximum Height | 23.5″ |
| Oil Capacity – Push (Cu. In.) | 53.67 |
| Oil Capacity – Pull (Cu. In.) | 25 |
| Shipping Weight | 40 lbs. |
