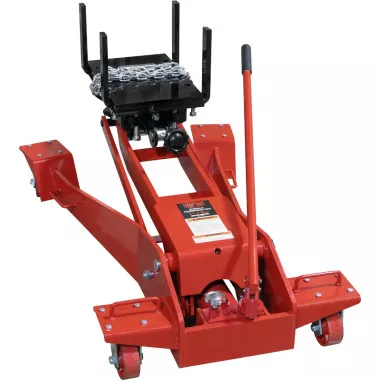

Norco 72000EI 1-1/2 Ton Transmission Jack – Imported
Intended Use
For heavy truck transmissions. Ideally suited for truck dealers, maintenance and heavy duty transmission repair centers.
Features
- Wide chassis with open front provides:
– Wider opening for saddle and transmission to come lower to the ground for easy removal.
– Efficient load distribution and stability.
– Easy access to saddle tilt knobs. - Fully adjustable universal saddle with adjustable arms to position the transmission.
- Heavy duty chain with convenient chain tensioner secures load to the saddle.
- Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
- Full 360 degree rotating handle operates in any position.
- Flash chromed ram inhibits rust from entering the hydraulic system.
- Four full-swivel ball bearing caster wheels for easy positioning.
Specifications
| Dimensions | |
| Low Lift Height | 7.75″ |
| High Lift Height | 36.5″ |
| Length | 45″ |
| Width | 28″ |
| Saddle Size | 10.25″ x 15.25″ |
| Shipping Weight | 310 lbs. |
Optional Accessories (Sold separately):
- Differential Adapter
- Fuller Eaton Roadranger Adapter
