Details
Info?

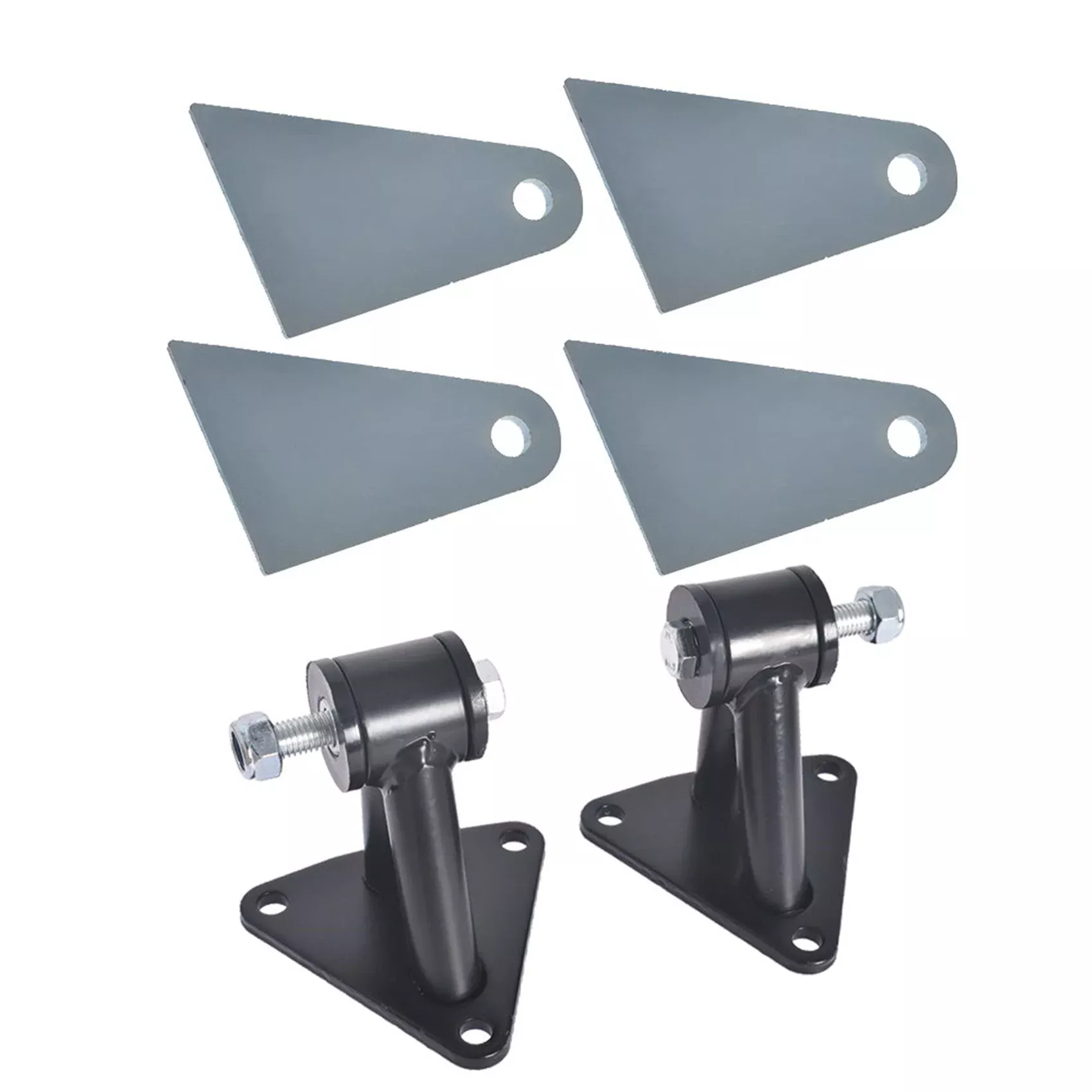

Universal mount for SBC/BBC engines
Polyurethane bushings for a comfortable ride quality
Weld-on frame stands, bolt-on engine mounts w/ hardware
Sold as a set
This mount will use replacement bushing 916-34545.
Welding and fitting required.
?Specs
Sold in Quantity
Kit
Color BlackA
Details
Info
Universal mount for SBC/BBC engines
Polyurethane bushings for a comfortable ride quality
Weld-on frame stands, bolt-on engine mounts w/ hardware
Sold as a set
This mount will use replacement bushing 916-34545.
Welding and fitting required.
Specs
Sold in Quantity
Kit
Color Black
Notes 20.38″ bushing eye-to-eye when bolted to a Chevy block (each mount is 3.31″ long to center of bushing).Three engine mount holes are 3.50″ center-to-center. Frame brackets are 3-7/8″ long.
Hardware Included Yes
Overall Height 4.13
Hole Diameter 0.50
Bushing Length 1.81
Base Length 4.08
Base Width 4.28
Material Thickness 0.25
Bushing Included Yes
Motor Mount Type Frame & Block Mounts
Application Compatibility Engine Swap
Attachment Style Weld-on/Bolt-on
Mount Material Steel
Mount Finish Painted
MFG. Part 91018040
Notes 20.38″ bushing eye-to-eye when bolted to a Chevy block (each mount is 3.31″ long to center of bushing).Three?engine mount holes are 3.50″ center-to-center. Frame brackets are 3-7/8″ long.
Hardware Included? ? Yes
Overall Height? ? ? ? 4.13
Hole Diameter? ? ? ?0.50
Bushing Length? ? ? ?1.81
Base Length? ? ? ? ??4.08
Base Width? ? ? ?4.28
Material Thickness? ? 0.25
Bushing Included? ? ? Yes
Motor Mount Type? ? ?Frame & Block Mounts
Application Compatibility? ? ?Engine Swap
Attachment Style? ? ? Weld-on/Bolt-on
Mount Material? ? ? ?Steel
Mount Finish? ? ? Painted
MFG. Part ? ? ? 91018040?
