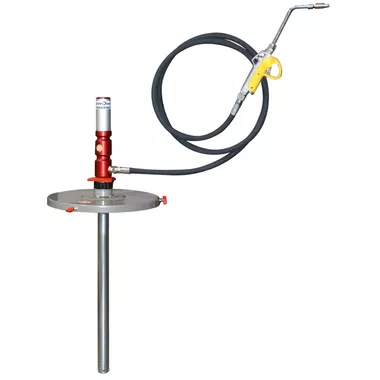

John Dow Industries JDOL-55 3:1 Oil System – 55-Gal.
*Image 2: Drum not included.
These Air-Operated Oil Delivery Systems come as a complete package with all required equipment. These systems fit 16 – and 55-gallon drums and are ideal for motor oil, synthetic oil, hydraulic oil and ATF. Each system is powered by a 3:1 medium pressure pump, comes with a delivery gun, 10’ delivery hose, and the 16-gallon system includes a drum cover.
Features
- Powered by 3:1 ratio medium pressure pump.
- Differential air motor ensures smooth pumping.
- Heavy-duty control valve.
- 10′ delivery hose.
Specifications
| Delivery Container | 55 Gallons |
| Pressure Ratio | 3:1 |
| Air inlet pressure | 70 – 115 psi |
| Air inlet connection | 1/4″ NPT (Female) |
| Air motor effective diameter | 2.49″ (63 mm) |
| Max pressure | 348 psi |
| Outlet connection | 1/2″ NPT (Male) |
| Model | Container | Pump | Hose | Delivery Gun | Cover | Weight |
| JDOL-55 | 55-gal | JD-3615 | JDM-1038 | JD-3930 | NA | 22 lbs |
