JET Tools JMD-40GH Geared Head Mill Drill 115/230

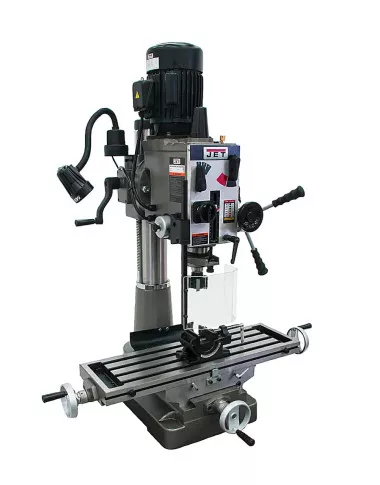

The JET JMD-40GH is a round-column geared head mill/drill built for heavier precision drilling and light milling. A six-speed geared head delivers full power to the cutting tool, the head tilts 90 degrees left and right, and the R8 spindle accepts standard mill tooling.
Features
- Heavy-duty design allows for a variety of precision drilling applications.
- Full power to the cutting tools through 6 speed geared head.
- CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified.
- Spindle guard.
- Work Lamp.
- Calibrated fine down feed built in.
- Easy to read internal depth gauge.
- Head tilts left & right 90º.
- Rapid spindle speed changes through quick-select gear shift levers.
- Forward/reverse switch.
- Milling table allows for movement.
- R8 spindle allows use of all mill tooling.
- Mill Drill Stand, p/n 350045, shown in some images, is optional (Sold Separately).
Specifications
| Model Number | JMD-40GH |
| Drilling Capacity (in.) | 1-1/2 |
| Face Mill Capacity (in.) | 4 |
| End Mill Capacity (in.) | 3/4 |
| Swing (in.) | 21 |
| Max Distance Spindle to Table (in.) | 15-3/4 |
| Spindle Taper | R8 |
| Spindle Travel Manual (in.) | 5 |
| Quill Diameter (in. | 3 |
| Column Diameter (in.) | 4-1/2 |
| Number of Spindle Speeds | 6 |
| Range of Spindle Speeds (rpm) | 65-1550 |
| Max. Table Travel (in.) | 20-1/2 |
| Cross Travel (in.) | 8-1/4 |
| Working Surface of Table (in.) | 8-1/4 x 28-3/4 |
| T-slots, Number and Size (in.) | 4 & 5/8 |
| Base Dimensions (in.) | 24-1/4 x 15-15/16 |
| Motor (HP) | 1-1/2HP, 115/230V, 1Ph |
| Prewired | 115V, 4P |
| Overall Dimensions (L x W x H / in.) | 28 x 39-1/4 x 42-1/2 |
| Weight (lbs.) | 694 |
