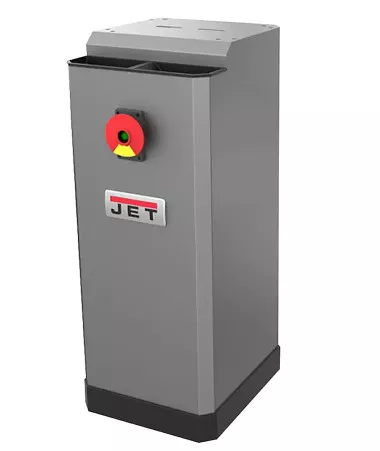

JET Tools JDCS-505, Metal Dust Collector Stand 115V
The JET JDCS-505 is a universal dust collection stand that mounts most brands of bench grinders and benchtop belt and disc sanders, capturing abrasive dust and chips at the source. A non-sparking aluminum fan and housing handle metal grinding debris, and the captured material collects in a metal drawer with replaceable filters.
Features
- Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders.
- Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection.
- Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips.
- Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector.
- Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable.
- Heavy-Duty 16 gauge steel construction.
- Four Adjustable Leveling Pads.
- Large On/off switch with safety key.
- CSA/CUS Certified.
Specifications
| Model Number | JDCS-505 |
| Style (Type) | Stand |
| Filter Efficiency | 90% @ 50 Microns |
| Sound Rating (Db.) | 75 db @ 10 Ft |
| Static Pressure (Wc.) | 748 |
| Filter Size (W x L x D) (In.) | 6-3/4 x 2-5/8 x 13-1/2 |
| Maximum CFM | 472 |
| Maximum Hose Velocity (SFPM) | 3,465 |
| Max. Static Pressure (Wc.) | 2440 |
| Port Size | 2 Inlets @ 3″ |
| Motor | 1/2 HP, 115V, 1Ph (20A) |
| Weight (Lbs.) | 110 |
