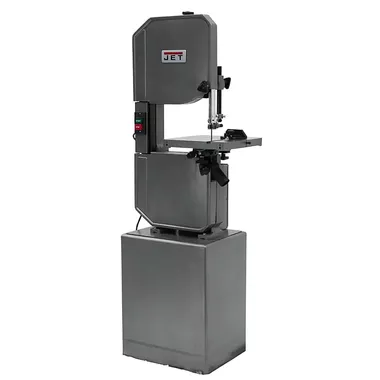

JET Tools J-8201K 14″ Vertical Bandsaw 1Ph W/ Stand
The JET J-8201K is a 14-inch vertical bandsaw for metal and wood cutting, supplied with its stand. A cast iron frame on a one-piece steel base provides stability, and a gear-box design broadens the range of metal, wood, non-ferrous and plastic cutting applications. It ships with both metal- and wood-cutting blades, a miter gauge and a dust chute.
Features
- For added safety, the J-8201K follows strict guidelines and electrical requirements to be certified by CSA Group.
- Solid one piece steel base for extra stability.
- Cast iron frame.
- Conveniently located on/off switch.
- Gear box design allows wood/metal model saws to be used for a wider variety of metal, wood, non-ferrous metal and plastic cutting applications.
- Miter gauge.
- Dust chute.
- Adjustable table.
- 14 TPI Metal Cutting Blade Included.
- 6 TPI Wood Cutting Blade Included.
Specifications
| Model Number | J-8201K |
| Blade Speeds Metal (sfpm) | 39, 57, 78, 107, 142, 196, 278 |
| Blade Speeds Wood (sfpm) | 3,300 |
| Under Guide (in.) | 6 |
| Under Guide with Riser Block (in.) | 12 |
| Height Capacity (max. / in.) | 6 |
| Throat Capacity (max. / in.) | 13-1/2 |
| Table Size (in.) | 14 x 14 |
| Table Tilt Right | 45 |
| Table Tilt Left | 15 |
| Blade Length (approx. / in.) | 92-1/2 |
| Blade Width (min-max / in.) | 1/8 – 3/4 |
| Miter Gauge Groove W x D (in. | 3/4 x 3/8 |
| Table Height (in.) | 44 |
| Motor (HP) | 1HP, 115/230V, 1Ph |
| Floor Space Required (L x W x H / in. | 26 x 18-1/2 x 67 |
| Weight (lbs.) | 308 |
WARNING: California Prop 65
Downloads
Manual
Warranty Information
