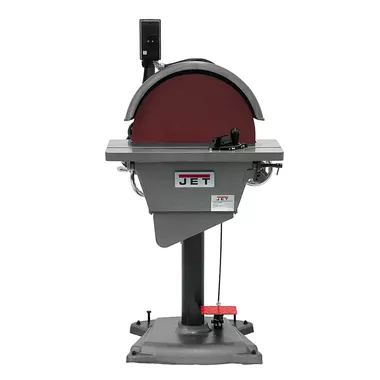

JET Tools J-4421-4 20″ Disc Sander 3PH 460V
The JET J-4421-4 is a 20-inch disc sander for finishing and stock removal across a wide range of materials. Its extra-large table tilts forward and back and lowers below the disc so the full abrasive surface can be put to work.
Features
- Tilting table capability adds flexibility of 45° forward and 15° backward on positive lock rack and gear.
- Precision table raiser utilizes a rack and gear mechanism for effortless operation.
- Extra large tilting table lowers completely below disc for use of the entire disc surface.
- Low voltage protection switch.
- Rigid column and heavy duty base.
- Direct drive motor.
- Miter gauge.
- Wrap over guard for added safety.
Specifications
| Model Number | J-4421-4 |
| Disc Diameter (in.) | 20 |
| Disc Speed (rpm) | 1,725 |
| Disc Table Size (L x W / in.) | 27-1/2 x 10-1/2 |
| Table Slots (in.) | 3/8 x 3/4 |
| Disc Table Tilt (deg.) | 45 out, 15 in |
| Motor (HP) | 3HP, 460V, 3Ph |
| Overall Dimensions (L x W x H / in.) | 30 x 28 x 53 |
| Weight (lbs.) | 450 |
