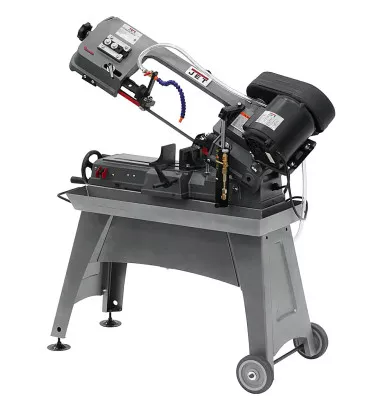

JET Tools J-3230, 5″ x 8″ Horizontal Bandsaw
The JET J-3230 is a horizontal metalworking bandsaw for the professional machine shop, supplied on a heavy-gauge steel stand with a shelf. An oil-bath worm-gear drive turns the blade while an adjustable hydraulic downfeed and coolant system support the cut, and the saw shuts off automatically when the cut is complete.
Features
- For added safety, the J-3230 follows strict guidelines and electrical requirements to be certified by CSA Group.
- Blade drive is a steel, heat treated worm driving a bronze worm gear in an oil bath.
- Adjustable blade guides with side eccentric shaft with ball bearings with rear-ball bearings.
- Fully adjustable hydraulic downfeed system.
- Heavy Duty 14-gauge steel stand with shelf has been redesigned for stability, rigidity and ease of use.
- Wheels and handle for easy movement.
- Automatic shut-off after cut.
- Coolant system.
- Adjustable material stop.
- 1/2″ Carbon Steel Blade.
Specifications
| Model Number | J-3230 |
| Blade Speeds (SFPM) | 85, 125, 200 |
| Blade Wheel Diameter (In.) | 7-1/2 |
| Drive | Belt Drive |
| Gross Weight (Lbs) | 165 |
| Motor (HP) | 1/2 HP, 115V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 37 x 16 x 37 |
| Prewired Voltage (V.) | 115 |
| Rectangle at 45 Degrees (In.) | 4-1/2 x 5 |
| Rectangle at 90 Degrees (In.) | 7-1/2 x 5 |
| Round at 45 Degrees (In.) | 4-1/2 |
| Round at 90 Degrees (In.) | 5 |
| Vise Swivels (Deg.) | 45 |
| Weight (Lbs.) | 165 |
