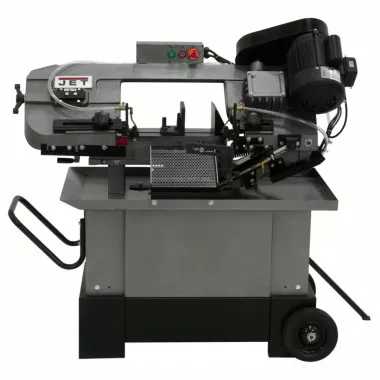

JET Tools HVBS-710S, 7″ x 10-1/2″ Horizontal/Vertical Mitering Bandsaw
The JET HVBS-710S is a horizontal/vertical mitering metalworking bandsaw whose head swivels while the base stays stationary, so the workpiece can remain in place for accurate crosscuts and miters. A hardened, ground drive transmits torque to the blade wheels, and a hydraulic downfeed, coolant system and vertical work table support a range of cutting.
Features
- Mitering head swivels to cut any angle 0° – 45° while the work piece remains secured.
- Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels.
- Fully adjustable hydraulic downfeed system.
- Heavy-duty cast iron saw bow and bed.
- Large 8″ wheels and handle for easy movement.
- Quick-positioning vise with fully adjustable jaws.
- Built-in, self propelled blade brush extends blade life.
- Vertical work table.
- Coolant system.
- Adjustable material stop.
- 3/4″ Bi-Metal blade.
Specifications
| Model Number | HVBS-710S |
| Bed Height (In.) | 23 |
| Blade Wheel Diameter (In.) | 11-3/4 |
| Drive | Belt Drive |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 51 x 22-1/2 x 41 |
| Prewired Voltage (V.) | 115 |
| Rectangle at 45 Degrees (In.) | 4-3/4 x 4 |
| Rectangle at 90 Degrees (In.) | 7 x 10-1/2 |
| Round at 45 Degrees (In.) | 4 |
| Round at 90 Degrees (In.) | 7 |
| Vise Swivels (Deg.) | 45 |
| Weight (Lbs.) | 463 |
