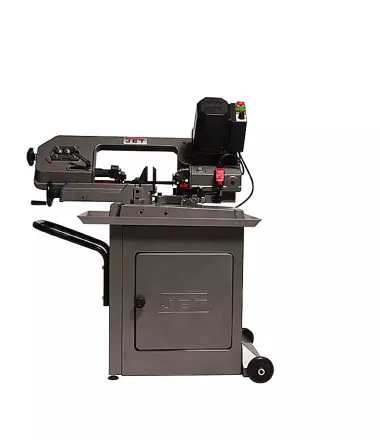

JET Tools HBS-56MVS, Variable Speed, Mitering 5″ x 6″ Horizontal Bandsaw, 5HP 115V
The JET HBS-56MVS is a portable horizontal mitering bandsaw built for the metalworking shop. Its DC motor with a 3-step gear transmission delivers torque across a variable blade speed range, while the swiveling head lets the operator make angled cuts without repositioning the workpiece. Front leveling pads and standard wheels make it easy to stage and move around the shop.
Features
- Heavy duty casted head for years of sawing.
- New DC motor with 3-step gear transmission increases torque output.
- Ball bearing supported blade wheel.
- CSA/US: Following strict guidelines and electrical requirements, this JET saw is CSA/US certified.
- Blade is fully guarded.
- Automatic shut-off after cut.
- Head swivels for a maximum cut at 45° & 60°.
- Variable Speed gives you the ability to cut various materials.
- Hardened Ferrous 82-130 SFPM.
- Ferrous 130-180 SFPM.
- Non-Ferrous, Plastic, Wood 180-230 SFPM.
- Quick speed changes with the turn of a dial, no more belt changes.
- Fully adjustable ball bearing blade guides.
- Front legs feature leveling pads.
- Wheels come standard for ease of movement around your shop.
Specifications
| Model Number | HBS-56MVS |
| Amperage | 3.8 |
| Amperage Draw @ 115V 1Ph | 3.8 |
| Bed Height (In.) | 28 |
| Blade Speed (SFPM) | Variable 80-230 |
| Blade Speeds (SFPM) | Variable, 80-230 |
| Blade Wheel Diameter (In.) | 7-3/8 |
| Electrics | 1/2 HP, 115V/ 1Ph Prewired 115V |
| Motor (HP) | 1/2 HP, 115V, Single Phase |
| Net Weight (Lbs.) | 136 |
| Overall Assembled (Bow Lowered) (L x W x H) | 38.58 x 20.47 x 47.3 |
| Overall Dimensions (L x W x H) (In.) | 38.58 x 20.47 x 43.3 |
| Prewired Voltage (V.) | 115 |
| Rectangle at 45 Degrees (In.) | 3-3/4 x 2-1/3 |
| Rectangle at 60 Degrees (In.) | 1-1/4 x 1-3/4 , 5 x 1-3/4 |
| Rectangle at 90 Degrees (In.) | 5 x 6 , 2 x 6 |
| Round at 45 Degrees (In.) | 3-3/4 |
| Round at 90 Degrees (In.) | 5 |
| Vise Swivels (Deg.) | 0 – 60 |
| Blade Size (In.) | 1/2 x .025 x 64-1/2 |
| Shipping Dimensions (L x W x H) (In.) | 35.43 x 17.5 x 21.65 |
| Shipping Weight (Lbs.) | 176 |
