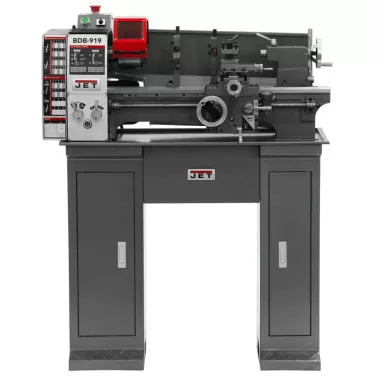

JET Tools Bdb-919 Belt Drive Bench Lathe With Stand
The JET BDB-919 belt-drive benchtop lathe comes paired with its matching floor stand. Induction-hardened ground bedways and tapered roller bearings deliver smooth, rigid turning, while a quick-change gearbox covers a wide range of inch and metric threads.
Features
- Backlash adjustments provided throughout the carriage.
- Emergency stop within easy reach of the Operator.
- Full Length Splash Guard.
- Induction hardened and ground bedway.
- Power longitudinal feed allows threading and reverse threading.
- Quick change gearbox provides wide range of inch and metric threads.
- Reversing switch for added versatility.
- Safety on/off switch.
- Spindle supported by precision tapered roller bearings.
- Standard Accessories.
Specifications
| Model Number | BDB-919 |
| Carriage Travel (In.) | 17.5 |
| Compound Slide Travel (In.) | 1-7/8 |
| Max Tool Size (In.) | 1/2 |
| Motor (HP) | 3/4 HP, 115V, 1PH |
| Number of Inch Threads | 27 |
| Number of Longitudinal and Cross Feed Rates | 60 |
| Number of Metric Threads | 12 |
| Number of Spindle Speeds | 6 |
| Overall Dimensions (L x W x H) (In.) | 41 x 22 x 20 |
| Range of Inch Threads (TPI) | 8 – 56 |
| Range of Longitudinal Feeds (IPR) | 0.0006-0.0368 |
| Range of Metric Threads | 0.5 – 3.5 |
| Range of Spindle Speeds (RPM) | 130-2000 |
| Spindle Bore (In.) | 3/4 |
| Spindle Mount | 1-1/2 x 8TPI |
| Spindle Taper with Sleeve | MT-3 |
| Steady Rest Capacity (In.) | 1-3/4 |
| Swing Over Bed (In.) | 8-3/4 |
| Swing Over Cross Slide (In.) | 5 |
| Tailstock Spindle Travel (In.) | 1-9/16 |
| Taper in Tailstock Spindle | MT-2 |
| Width of Bed (In.) | 4-1/2 |
| Weight (Lbs.) | 367 |
