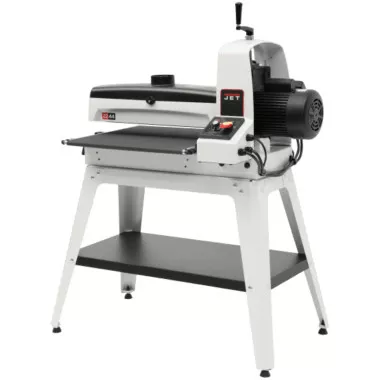

JET Tools 723540OSK JWDS-2244 Drum Sander w/Open Stand
The JET JWDS-2244 is a floor-standing single-drum sander with a 5-inch by 22-inch drum, built to bring boards to a consistent, finish-ready surface. Separate feed and drum motors give independent control, while variable feed speed and the SandSmart load monitor help match the rate to each project and guard against overload.
Features
- Self-Cooling Drum.
- Drum is easily removable.
- Drum utilizes sealed and permanently lubricated ball bearings for longer life.
- Dust hose hanger for added ease of use.
- Integrated on/off switch and variable speed control knob are conveniently located.
- Precision-flattened reinforced steel conveyor bed.
- Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage.
- Separate feed and drum motors provide independent control, optimizing the performance of the sander.
- Stand features a 23-1/4″ x 41-3/4″ footprint to increase stability and has a storage shelf and pre-drilled holes for casters.
- The relative depth scale on the handwheel allows the user to reset and measure the depth for every project.
Specifications
| Stock Number | JT-723540OSK |
| Drum Diameter (In.) | 5 |
| Drum Length (In.) | 22 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Board Thickness (In.) | 4 |
| Minimum Board Length (In.) | 2-3/8 |
| Minimum Board Thickness (In.) | 1/32 |
| Model Number | JWDS-2244 |
| Motor Amps | 15 |
| Motor Power (HP) | 1-3/4 |
| Style (Type) | Floor standing Model |
| Weight | 242 |
