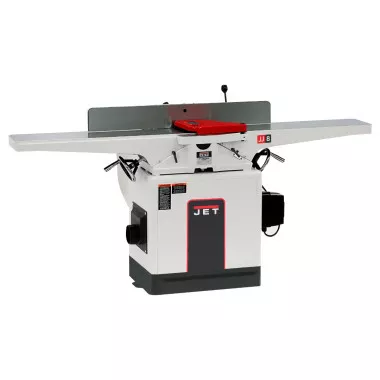

JET Tools 718200K JWJ-8CS 8″ Jointer, 2HP 1PH 230V
The JET JWJ-8CS is an 8″ long-bed jointer for flattening and squaring board faces and edges in the woodshop. It runs on a 2HP 230V single-phase motor with a three-knife straight cutterhead, extra-long cast iron infeed and outfeed tables, and a two-way tilting fence with positive stops at 45 and 90 degrees.
Features
- Built-in 4″ dust chute connects to your collection system for efficient dust/chip disposal.
- Built-in rabbeting ledge adds versatility.
- Fence adjustment levers are conveniently located in the center of the fence for quick access.
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability.
- Magnetic controls provide long life and reliability, protecting the motor from potential electrical supply issues.
- Tall, rigid fence provides added support.
- Three high speed steel knives provide over 16,500 cuts per minute for a superior finish.
*NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2″ as the manual has always stated.
Specifications
| Stock Number | JT-718200K |
| Model Number | JWJ-8CS |
| Type of Cutterhead | Straight Knife |
| Maximum Cutting Depth (In.) | 1/8″ |
| Cutterhead Speed (RPM) | 5500 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Fence Size (L x H) (In.) | 4-3/4″ x 38″ |
| Number of Knives | 3 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 1 |
| Motor Amps | 12 |
| Max.Rabbeting Capacity (In.) | 31-1/4 |
| Table Height from Floor (In.) | 72 x 9 |
| Table Size (L x W) (In.) | 72 x 9 |
| Gross Weight | 452.0 |
| Net weight | 375.0 |
