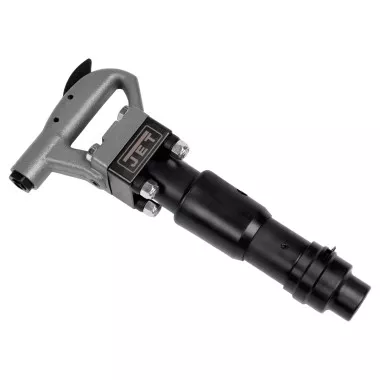

JET Tools 550623 JCT-3623, 4″ 4-Bolt Chipping Hammer Hex Shank
The JET JCT-3623 is a pneumatic chipping hammer with a 4-inch stroke, four-bolt D handle, and hex shank for heavy-duty work on the construction site. The four-bolt backhead eases serviceability and accepts standard oval collared chisels and retainers.
Features
- Comes with standard type retainer.
- Easy serviceability with the 4-Bolt backhead.
- Ergonomic “D” style forged handle with outside trigger.
- Heat treated cylinder and piston for added durability.
- Heavy-Duty, industry proven valve design.
Specifications
| Stock Number | JT-550623 |
| Air Consumption (CFM) | 30 |
| Air Inlet (NPT) | 3/8 |
| Blows Per Minute | 1700 |
| Bore Size (In.) | 1-1/8 |
| Min. Air Hose (ID) | 1/2 |
| Model Number | JCT-3623 |
| Noise Level (dBA) | 96 |
| Overall Length (In.) | 16.08 |
| Piston Stroke (In.) | 4-1/4 |
| Shank Bushing Size (In.) | 0.580 |
| Vibration Value (m/s ) | 16.08 |
| Weight (Lbs.) | 23 |
| Shank Bushing Style | Hex |
WARNING: California Prop 65
Downloads
Manual
Warranty Information
