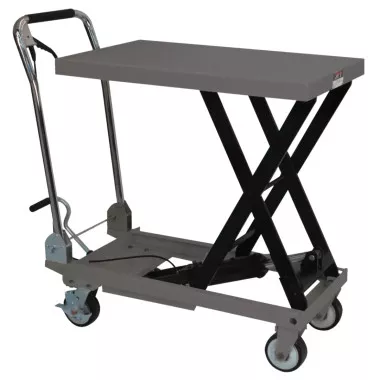

JET Tools 140771 SLT-330F, Scissor Lift Table, Folding Handle, 330-lb. Capacity
The JET SLT-330F is a hydraulic scissor lift table that raises, positions and moves materials around a shop, warehouse or office. Rated at 330 lbs, it is operated by a foot pump and rolls on four casters, with a fold-down handle for compact storage.
Features
- All steel design of frame and table permit the transport of heavy materials.
- Easy-to-use hydraulic foot pump for precision raising and lowering of table.
- Fixed rear wheels feature parking brakes for added safety.
- Fold-down handle for easy storage.
- Overload Protection ball valve prevents lifting loads past maximum capacity.
- Smooth rolling 4 inch poly over nylon wheels, two swivel and two fixed for increased maneuverability.
- Top-Stroke release valve prevents cylinder extension beyond maximum height.
Specifications
| Stock Number | JT-140771 |
| Capacity (Lbs.) | 330 |
| Handle Height (In.) | 34,125 |
| Maximum Height (In.) | 28-3/4 |
| Minimum Height (In.) | 8-5/8 |
| Model Number | SLT-330F |
| Number of Strokes to Reach Maximum Height | 16 |
| Overall Dimensions (L x W x H) (In.) | 36 x 17-3/4 |
| Table Size (L x W) (In.) | 27-1/2 x 17-3/4 |
| Weight (Lbs.) | 91.3 |
| Wheel Diameter (In.) | 5 |
| Overall Dimensions (L x W / in.) | 36 x 17-3/4 |
