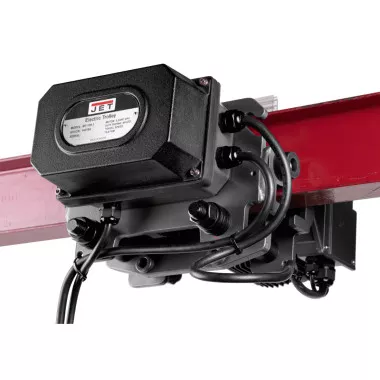

JET Tools 140187 MT200 2T Electric Trolley
The JET MT200 is a 2-ton electric trolley that moves a hoist and its load along an I-beam in industrial lifting applications. Two travel speeds, ranging from 20 to 79 feet per minute, let the operator move loads quickly and then slow for precise placement, and it fits beam flange widths from 4 to 6 inches.
Features
- Heavy-Duty motor puts out up to 0.8HP making it the strongest in it’s class.
- TAA Approved.
- Two speeds reduces bump firing to while still allowing high speed movement of materials.
- Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant.
- Expanded flange capacity kits are available.
Specifications
| Stock Number | JT-140187 |
| Capacity (Lbs.) | 4400 |
| Load Capacity (Tons) | 2 |
| Maximum Beam Flange Width (In.) | 6 |
| Minimum Beam Curve Radius (In.) | 66.9 |
| Minimum Beam Flange Width (In.) | 4 |
| Model Number | MT200 |
| Motor (HP) | .12 / .49 |
| Motor Voltage (V.) | 230 |
| Weight (Lbs.) | 126 |
| Wheel Diameter (In.) | 1-1/4 |
| Travel Speed – Low (FPM) | 20 |
| Travel Speed – High (FPM) | 79 |
