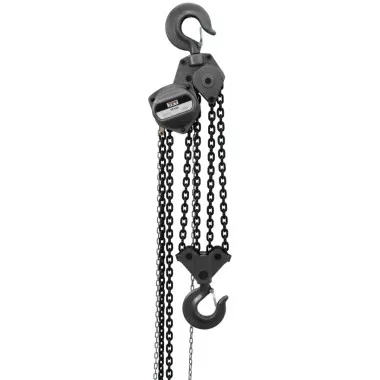

JET Tools 101960 S90-1000-10, 10 Ton 10′ Lift
The JET S90-1000-10 is a 10-ton hand chain hoist with a 10-foot lift, built as a contractor-grade unit for light-duty industrial lifting. Its all-steel construction and Grade 80 load chain are designed for straightforward service and maintenance.
Features
- All steel construction.
- Grade 80 black oxide coated load chain for added durability.
- Heat Treated Load Plates.
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation.
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist.
- Needle bearings support the load sheave to increase efficiency and promote smooth operation.
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations.
- The smaller body and lightweight design are ideal for confined areas and low headroom applications.
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety.
Specifications
| Stock Number | JT-101960 |
| Hand Chain To Lift Load 1 ft. | 357 |
| Capacity (Lbs.) | 22000 |
| Lift (Ft.) | 10 |
| Load Capacity (Tons) | 10 |
| Load Chain Dimensions dia/mm) | 10 x 30 |
| Model Number | S90-1000-10 |
| Weight (Lbs.) | 220 |
| Lbs. of Pull to Lift Capacity | 96 |
| Headroom (In.) | 30 |
