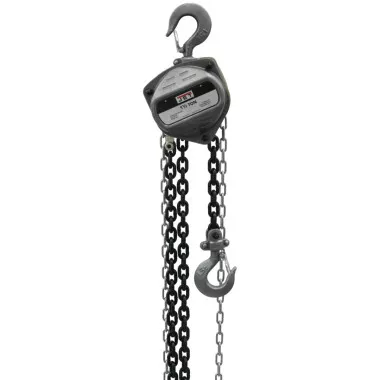

JET Tools 101922 S90-150-20, 1-1/2 Ton 20′ Lift
The JET S90-150-20 is a 1-1/2-ton hand chain hoist with a 20-foot lift, designed for reliable, durable performance in light-duty industrial applications. Easy to maintain and service, it serves as a dependable contractor-grade hoist for everyday lifting.
JET S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET S90 is the ideal contractor grade hoist.
Features
- All steel construction.
- Grade 80 black oxide coated load chain for added durability.
- Heat Treated Load Plates.
- Impact resistant all steel construction for added durability and protection.
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation.
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist.
- Load tested to 125% of capacity with certificate.
- Needle bearings support the load sheave to increase efficiency and promote smooth operation.
- NEW! Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations.
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- The smaller body and lightweight design are ideal for confined areas and low headroom applications.
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety.
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security.
Specifications
| Stock Number | JT-101922 |
| Hand Chain To Lift Load 1 ft. | 57 |
| Capacity (Lbs.) | 3300 |
| Lift (Ft.) | 20 |
| Load Capacity (Tons) | 1-1/2 |
| Load Chain Dimensions dia/mm) | 8 X 24 |
| Model Number | S90-150-20 |
| Weight (Lbs.) | 57 |
| Lbs. of Pull to Lift Capacity | 84 |
| Headroom (In.) | 14-1/2 |
