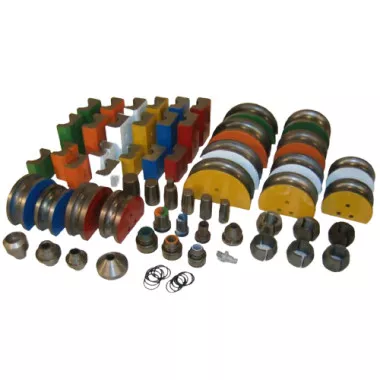

Huth Ben Pearson 62213 Super 150 Die Package
Operator convenience is the name of the game in the exhaust industry. The quicker the job, the more profit you can make. At Huth/Ben Pearson they know this, and that’s why they designed their quick-change dies for maximum speed and versatility. You won’t find any bolts, pins, or pusher blocks. It’s quick and easy with Huth/Ben Pearson.
Super 150 Die Package Includes:
| Radius Dies |
| NO. |
RADIUS |
SIZE |
| 60221 |
3″ |
1-1/2″ |
| 60222 |
4″ |
1-1/2″ |
| 60225 |
3″ |
1-3/4″ |
| 60226 |
4″ |
1-3/4″ |
| 60230 |
3″ |
1-7/8″ |
| 60231 |
4″ |
1-7/8″ |
| 60232 |
5″ |
1-7/8″ |
| 60235 |
3″ |
2″ |
| 60236 |
4″ |
2″ |
| 60237 |
5″ |
2″ |
| 60240 |
3″ |
2-1/4″ |
| 60241 |
4″ |
2-1/4″ |
| 60242 |
5″ |
2-1/4″ |
| 60245 |
4″ |
2-1/2″ |
| 60246 |
5″ |
2-1/2″ |
|
|
| Half Shoes |
| NO. |
SIZE |
| 61014 |
1-1/2″ |
| 61015 |
1-3/4″ |
| 61016 |
1-7/8″ |
| 61017 |
2″ |
| 61018 |
2-1/4″ |
| 61019 |
2-1/2″ |
|
|
| Collets (2 required) |
| NO. |
SIZE |
| 61430 |
1-1/2″ |
| 61428 |
1-3/4″ |
| 61427 |
1-7/8″ |
| 61426 |
2″ |
| 61424 |
2-1/4″ |
| 61423 |
2-1/2″ |
|
|
| Back Shoes (2 required) |
| NO. |
PCS. |
SIZE |
| 61000 |
2 |
1-1/2″ |
| 61001 |
2 |
1-3/4″ |
| 61002 |
2 |
1-7/8″ |
| 61003 |
2 |
2″ |
| 61004 |
2 |
2-1/4″ |
| 61005 |
2 |
2-1/2″ |
|
| Solid Die Flare – Pipe Flanger |
| NO. |
SIZE |
| 853 |
45°/90° Flare
1-1/2″ – 3-1/2″
(Supersedes 617049) |
|
|
| Buick Ball Tools |
| NO. |
SIZE |
| 61544 |
2″ |
| 61545 |
2-1/4″ |
| 61546 |
2-1/2″ |
|
|
| Swage Assembly |
| NO. |
SIZE |
| 61241 |
1-1/2″ |
| 61237 |
1-3/4″ |
| 61235 |
1-7/8″ |
| 61233 |
2″ |
| 61231 |
2-1/4″ |
| 61229 |
2-1/2″ |
|
|
| Expander Segments |
| NO. |
SIZE |
| 61967 |
1-1/2″ – 1-5/8″ |
| 61548 |
1-3/4″ – 2″ |
| 61549 |
2-1/8″ – 2-1/2″ |
|
| Female Ball Joints |
| NO. |
SIZE |
| 555 |
1-3/4″ – 2″
(Supersedes 60780) |
| 556 |
2-1/4″ – 2-1/2″
(Supersedes 60779) |
|
|
| Super Flange Assembly |
| NO. |
SIZE |
| 61258 |
1-1/2″ and 2″ |
| 61841 |
O-Ring Kit |
|
|
| Three Quarter Shoes |
| NO. |
SIZE |
| 61011 |
2″ |
| 61012 |
2-1/4″ |
|
|
| Flare Segment 45° |
| NO. |
SIZE |
| 62995 |
1-1/2″ – 2-1/2″
(Supersedes Parts
61542 and 61778) |
|
