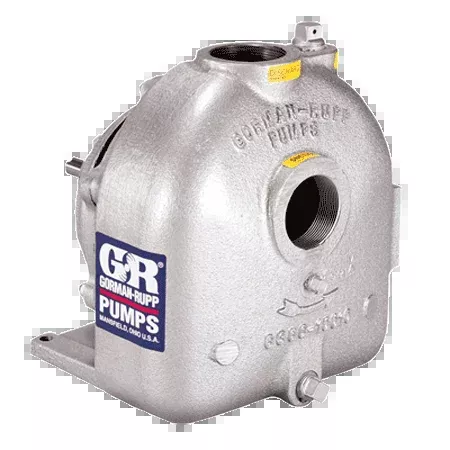

Gorman-Rupp 02D3-B 2″ Self Priming O-Series Pump

• Size: 2” x 2” (51 mm x 51 mm) NPT – Female
• Casing: Gray Iron 30.
• Maximum Operating Pressure 36 psi (248 kPa)*
• Enclosed Type, Six
• Vane Impeller: Copper Alloy C83600.
• Handles 3/8” (9,5 mm) Diameter Spherical Solids.
• Impeller Shaft: Carbon Steel 1215.
• Replaceable Vane Plate: Gray Iron 30.
• Bearing Housing: Gray Iron 30.
• Intermediate: Gray Iron 30.
• Thrust and Radial Bearings: Sealed Single Row Ball.
• Gaskets: NC710 Cork with Nitrile Binder.
• O‐Ring: Fluorocarbon (DuPont Viton or Equivalent).
• Hardware: Standard Plated Steel.

SEAL DETAIL:

Type 21, Mechanical, Self‐Lubricated.
Carbon Rotating Face. Ni‐Resist Stationary
Face. Fluorocarbon Elastomers (DuPont
Viton or Equivalent). Stainless Steel 18‐8
Cage and Spring. Maximum Temperature
of Liquid Pumped, 160F. (71C.)
