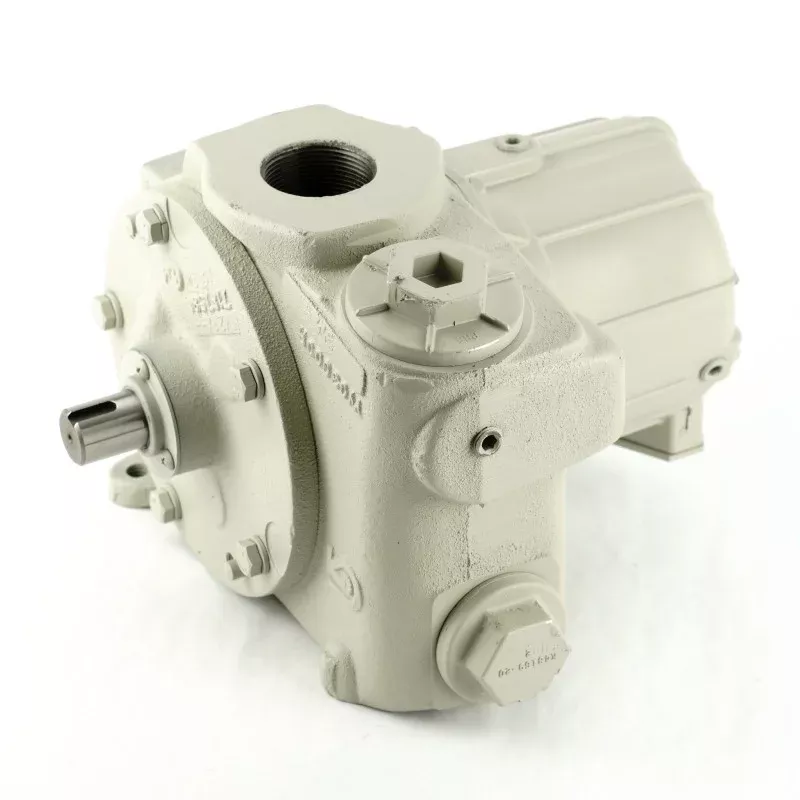

Gilbarco Gerotor Pumping Unit – standard flow, top outlet, 1″ diameter shaft, short shaft (1″ of shaft exposed).
Used in Advantage dispensers, optional in Legacy dispensers.
The 22015-L, 22015-S, 22065-L and this Gilbarco pumping unit have a 1″ diameter pulley shaft. This pumping unit uses a short shaft with a 1/4″ wide key.
Screw threads at the pump outlet flange are 5/16-18 UNC and the pump mounting screw threads are 1/2-13 UNC.
Used with PMP 22200, 22201 and 22202 Remanufactured Gilbarco Air Eliminator
