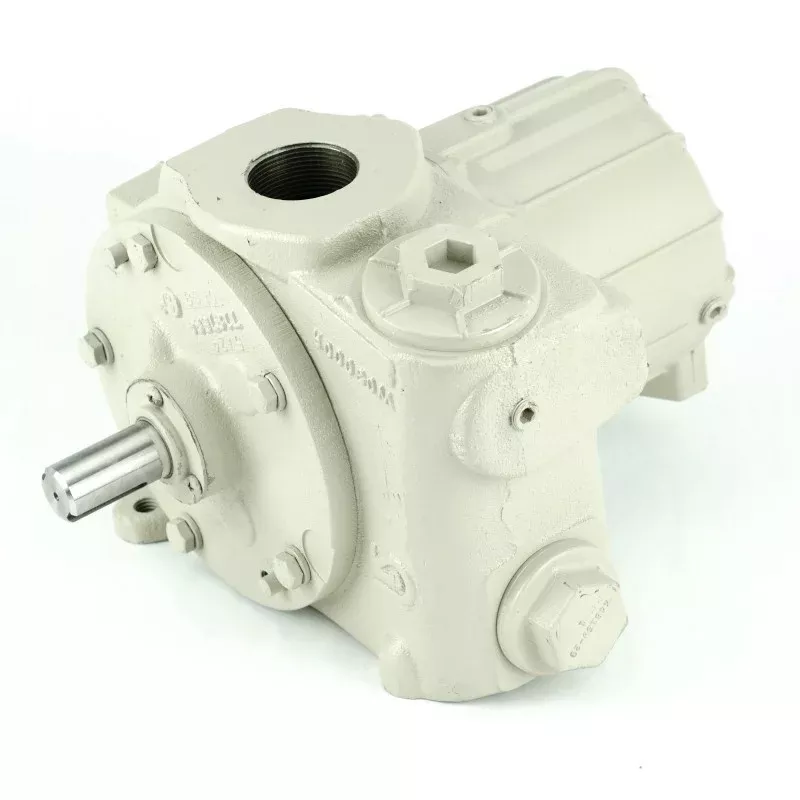

Gilbarco Gerotor Pumping Unit – Standard Flow, 1″ diameter shaft, top outlet, 1″ diameter shaft, long shaft (2″ of shaft exposed).
Used in Advantage dispensers, optional in Legacy dispensers.
The 22015-L, 22015-S, 22065-S and this Gilbarco pumping unit have a 1″ diameter pulley shaft. This pumping unit uses a long shaft with a 6mm wide key.
The screw threads at the pump outlet flange are M8 x 1.25mm and the pump mounting screw threads are M12 x 1.75mm.
Used with PMP 22200, 22201 and 22202 Remanufactured Gilbarco Air Eliminators.
