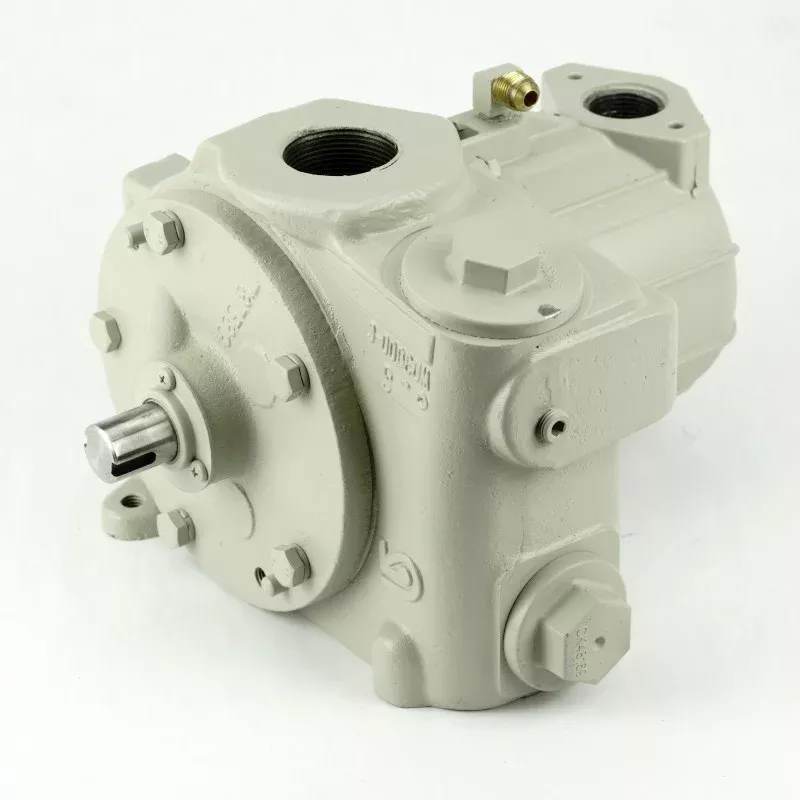

Gilbarco Gerotor Pumping Unit – Standard Flow, 1″ diameter shaft, short length 1″ shaft
Used in Advantage, optional in Legacy
The 22015-L, 22065-L, 22065-S and this Gilbarco pumping unit have a 1″ diameter pulley shaft. This pumping unit uses a short shaft with a 1/4″ wide key.
This is the only Gilbarco pumping unit with a 1″ diameter pulley shaft, the shaft uses a 1/4″ wide key.
Screw threads at the pump outlet flange are 5/16-18 UNC and the pump mounting screw threads are 1/2-13 UNC.
Used with PMP 22200, 22201 and 22202 Remanufactured Gilbarco Air Eliminator
