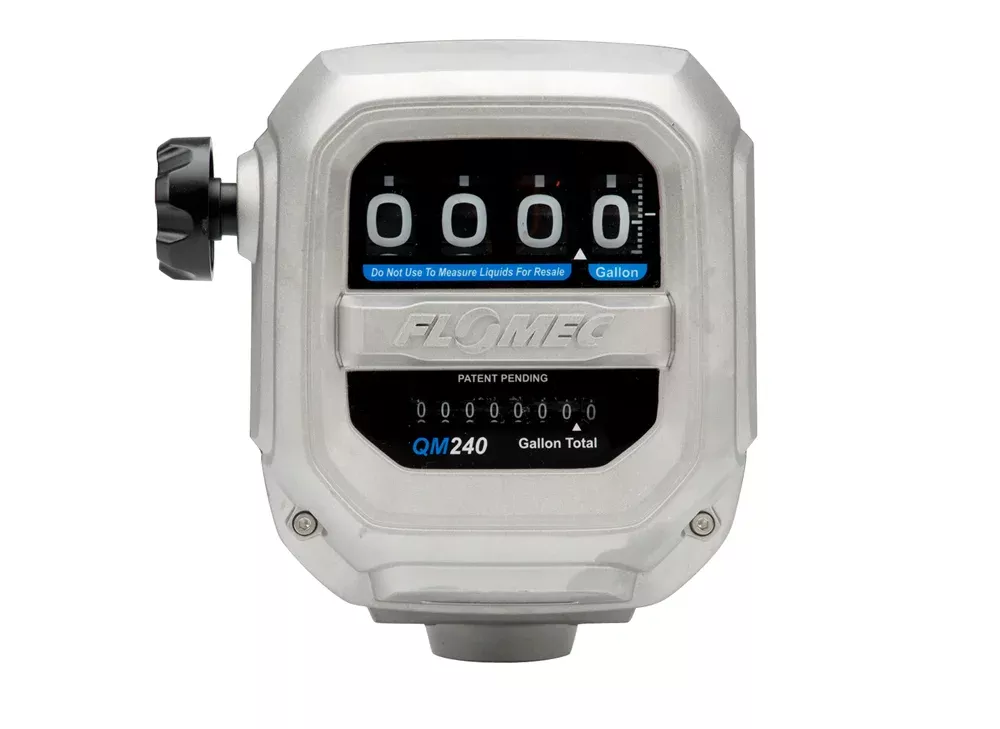

| Model Designation | QM240N | |||
| Part Number | 139121-06 | |||
| Unit of Measure | U.S. Gallon | |||
| Flow Range | 2 to 40 GPM | |||
| Typical Accuracy: Diesel | +1/2% to -1/4% (2 to 40 GPM) | |||
| Typical Accuracy: Unleaded | -1/2% to -2% (2 to 20 GPM / 8 to 75 LPM) | |||
| -1/2% to -3% (2 to 40 GPM / 8 to 150 LPM) | ||||
| Operating Temperature | -40° to 125° F / -40° to 52° C (-20° to 125° F UL) | |||
| Maximum Working Pressure | 50 PSIG / 3.4 Bar | |||
| Wetted Materials: | ||||
| Housing / Cover / Fittings | Aluminum | |||
| Rotors | PPS (Polyphenylene Sulfide) | |||
| Shafts / Strainer | Stainless Steel | |||
| Seals | NBR (Nitrile Butadiene Rubber) | |||
| Mag-Drive | Acetal, Stainless Steel and Neodymium (Nickel Plated) | |||
| Inlet/Outlet Ports | 1″ NPT (female) | |||
| 1 NPT (female) | ||||
| Pressure Drop (psi) | 0 @ 5 GPM / 19 LPM | |||
| 2.0 @ 20 GPM / 75 LPM (3.0 Diesel) | ||||
| 4.5 @ 40 GPM / 150 LPM (7.0 Diesel) | ||||
| Maximum Batch Total | 999.9 | 9999 | ||
| Maximum Cumulative Total | 9,999,999.90 | 99,999,999 | ||
| Technology | Positive Displacement Oval Gear | |||
| Approvals | UL 25 |
