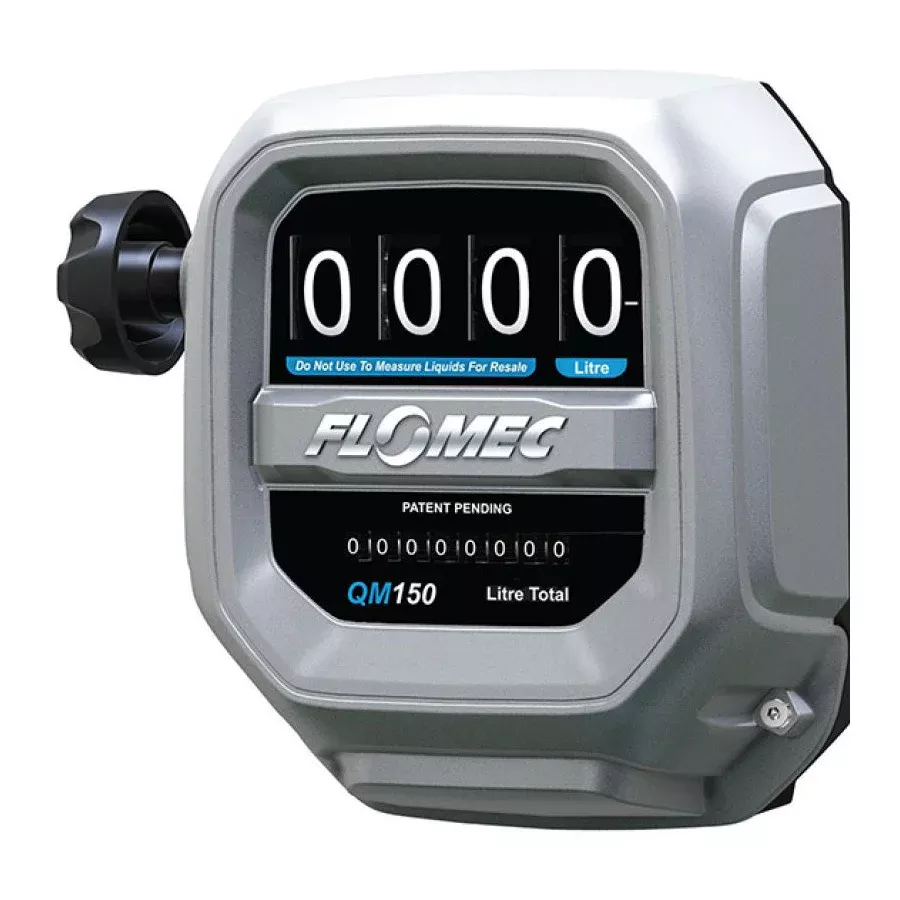

| Model Designation | QM150N | |
| Part Number | 139121-07 | |
| Unit of Measure | Litre | |
| Flow Range | 8 to 150 LPM | |
| Typical Accuracy: Diesel | +1/2% to -1/4% (2 to 40 GPM) | |
| Typical Accuracy: Unleaded | -1/2% to -2% (2 to 20 GPM / 8 to 75 LPM) | |
| -1/2% to -3% (2 to 40 GPM / 8 to 150 LPM) | ||
| Operating Temperature | -40° to 125° F / -40° to 52° C (-20° to 125° F UL) | |
| Maximum Working Pressure | 50 PSIG / 3.4 Bar | |
| Housing / Cover / Fittings | Aluminum | |
| Rotors | PPS (Polyphenylene Sulfide) | |
| Shafts / Strainer | Stainless Steel | |
| Seals | NBR (Nitrile Butadiene Rubber) | |
| Mag-Drive | Acetal, Stainless Steel and Neodymium (Nickel Plated) | |
| Inlet/Outlet Ports | 1″ NPT (female) | |
| 1 NPT (female) | ||
| Pressure Drop (psi) | 0 @ 5 GPM / 19 LPM | |
| 2.0 @ 20 GPM / 75 LPM (3.0 Diesel) | ||
| 4.5 @ 40 GPM / 150 LPM (7.0 Diesel) | ||
| Maximum Batch Total | 999.9 | |
| Maximum Cumulative Total | 9,999,999.90 | |
| Technology | Positive Displacement Oval Gear | |
| Approvals | UL 25 |
