Keep the cooling system clean of debris with our 5.9l coolant filtration kit!

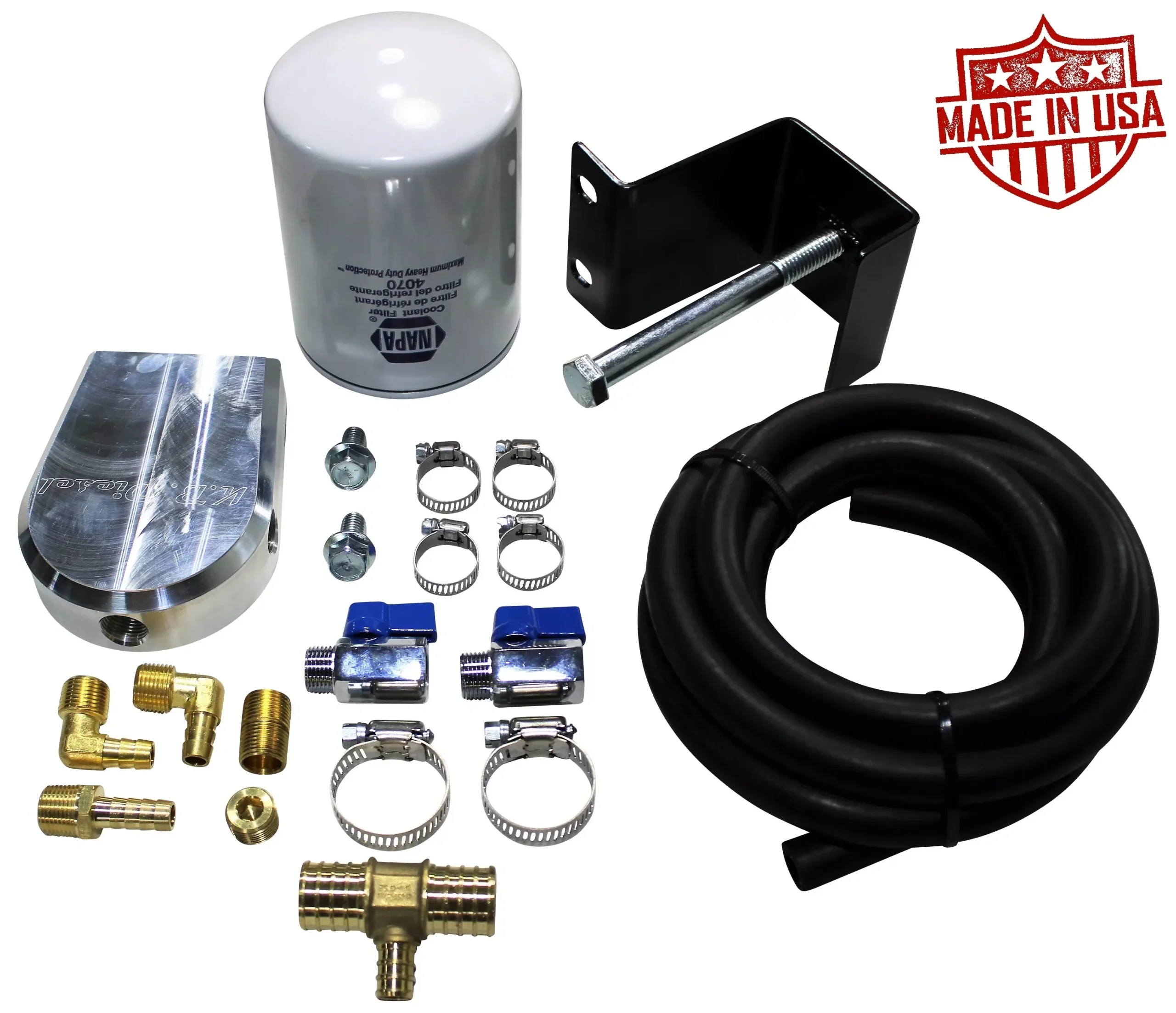

Includes:
1. Coolant Filter Base (Made in USA)
1. Mounting Bracket (Made in USA)
1. Option of Coolant Filter(s)
1. 1/2 by 8″ Long Mounting Bolt
1. Filter Nipple
10.5′ of 3/8″ Coolant Hose
2. 3/8″ Ball Valves
4. 6 Hose Clamps
2. 12 Hose Clamps
1. Brass 1/4 MPT to 3/8 Barb
2. Brass 90° MPT to 3/8 Barb
1. Brass Tee 3/4-3/8-3/4
2. 3/8 Mounting Bolts
1. 3/8 Countersunk Hex Plug
List of filters that can be used on our base:
NAPA: 4070, 4073, 4069
Wix: 24070, 24073, 2469
CAT: 435-5142
Fits: 2003-2007 2500/3500 Dodge trucks with 5.9l Cummins
Installation Notes:
Mounting Location: Passenger side frame rail, using factory hole through the frame rail. Bracket sits on top of the frame, the bolt is inserted from the bottom of the frame.
Return Hose: Side of filter mount to 3/4″ hose leaving the heater core to cylinder head
Supply Hose: End of filter mount (90° from return hose) to 1/4″ NPT port located on passenger side of engine head near valve cover
Made In USA Disclaimer: Filter base & bracket are made in the USA. Hose clamps, hardware, hose and fittings may be sourced globally.
