Keep the cooling system clean of debris with our 7.3l coolant filtration kit!

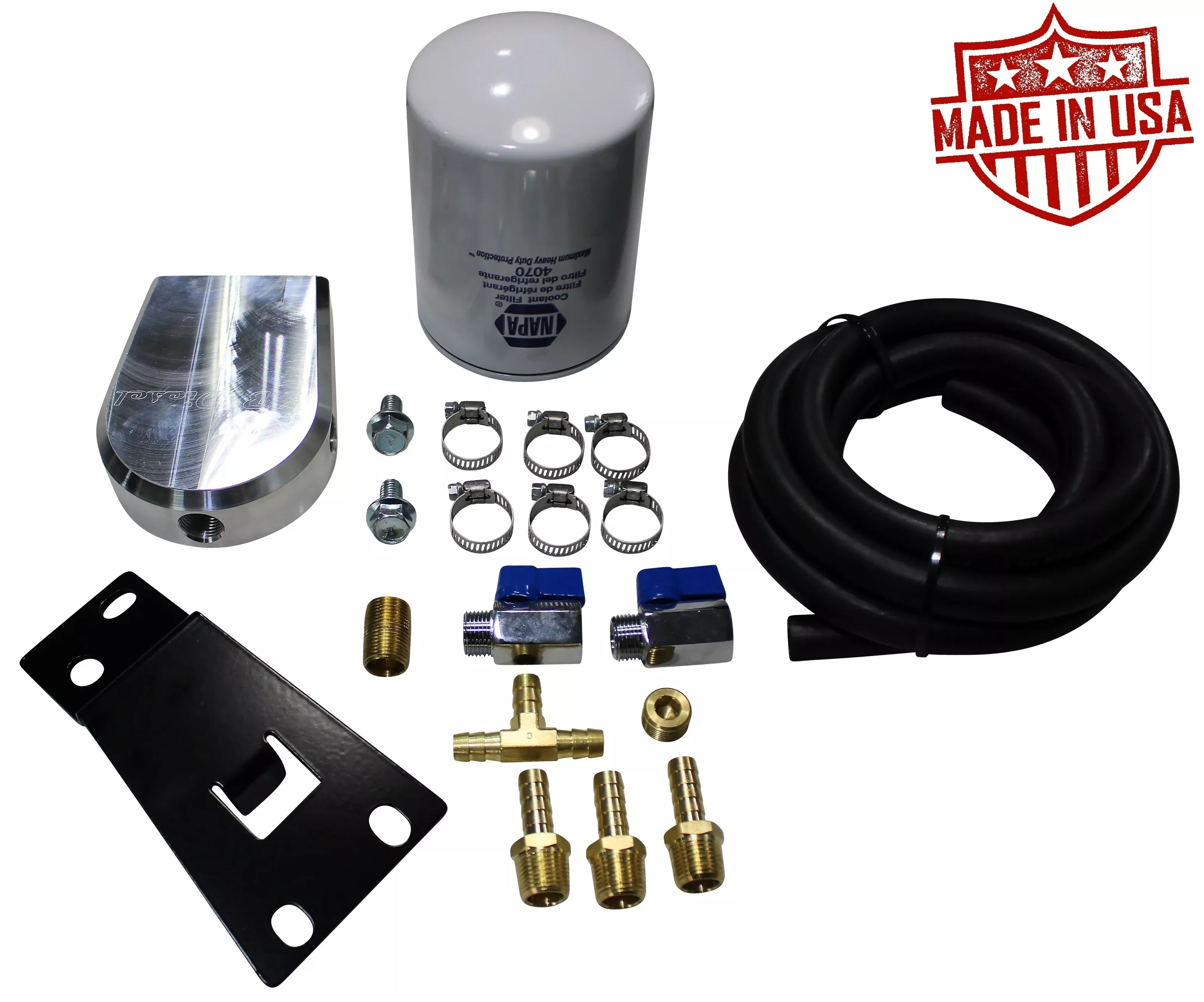

Includes:
1. Coolant Filter Base (Made in USA)
1. Mounting Bracket (Made in USA)
1. Option of Coolant Filter(s)
1. Filter Nipple
2.5′ of 3/8″ Coolant Hose
2. 3/8″ Ball Valves
6. 6 Hose Clamps
3. Brass 3/8 MPT to 3/8 Barb
1. Brass Tee 3/8-3/8-3/8
2. 3/8 Mounting Bolts
1. 3/8 Countersunk Hex Plug
List of filters that can be used on our base:
NAPA: 4070, 4073, 4069
Wix: 24070, 24073, 2469
CAT: 435-5142
Fits: 1999-2003 Ford 7.3l Powerstroke equipped F250, F350, F450 & Excursions
Installation Notes:
Mounting Location: Top of drivers side core support
Return Hose: Side of filter mount to 3/8″ hose leading to overflow bottle
Supply Hose: End of filter mount (90° from return hose) to 3/8″ port located under thermostat with square countersunk plug
Made In USA Disclaimer: Filter base & bracket are made in the USA. Hose clamps, hardware, hose and fittings may be sourced globally.
