Product Description

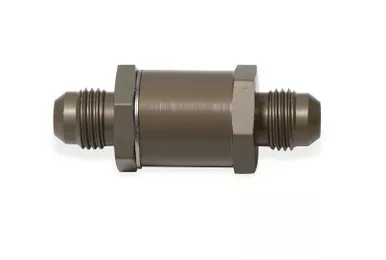

Earl’s is pleased to release a new one-way check valve that is ideal for use on fuel and oil systems.Now offered with internal stainless steel hinge and GF-600S Viton�� seal.The GF-600S Viton�� is the highest quality seal material for all types of fuels including diesel & alcohol.The Internal spring releases to full flow at 1 psi (Note: blowing through it will only partially release the hinge).High PSI Rating is 1250 PSI.This product uses a proven military design & provides for a more compact unit over conventional flapper check valves.
Features
- High Quality Check Valve w/ Stainless Steel Hinge Door ��� Proven Military Style Design
- Seal Material: GF-600S Viton�� – Peroxide-Curable Polymer Designed to Provide Outstanding Performance
- Ideal for Use w/ Fuels, Oil, Coolant, Air, Diesel, Methanol & Ethanol
- Valve Opens Fully at 1 PSI (Note: blowing through it will only partially release the hinge)
- Maximum Pressure 1250 PSI
- Body is Anodized Aluminum
Specifications
- Adapter Type: Check Valve
- Body Length: 1.35″
- Brand: Earl’s
- Diameter: .930 in
- Emission Code: 5
- Finish: Anodized Pewter
- Inlet / Outlet Size: 8 AN MALE
- Material: Aluminum
- Overall Dimension: 2.75″
- Product Type: Check Valve
- PSI Rating: 1250
- Seal Material: GF-600SViton��
Installation Notes
GF-600S Viton�� is a registered trademark of DuPont���
