Product Description

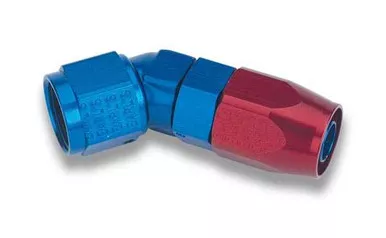

Earl’s uses aluminum alloys that meet or exceed minimum requirements for aerospace hose fittings in their Swivel-Seal hose ends. These components are precision-machined to exact tolerances for trouble-free performance. Some features include an unmatched bend design, allowing for the maximum fluid flow capacity, and aluminum retention pins, allowing for 360 degrees of rotation after installation. The nipple-and-cutter design that Earl’s uses has been aerospace-proven for more than 40 years.
Features
- Aerospace Proven Design & Materials
- Dual Plane Anti-Seepage Seal
- Low Profile Design Provides Excellent Fuel Flow Capacity
- Nipple and Cutter Design Assures Leak Free Performance
- Precision Machined
- Stainless Retention Pins Allow 360 Adjustment After Installation
Specifications
- Adjustable: Yes
- AN Thread: 16 AN
- Angle: 45 Degree
- Assembly Method: Twist On
- Brand: Earl’s
- Compatible Hose: Auto-Flex
- Compatible Hose: Mr Gasket Black Nylon
- Compatible Hose: Perform-O-Flex
- Compatible Hose: Pro-Lite 350
- Compatible Hose: Pro-Lite 390
- Emission Code: 5
- Finish: Anodized Red and Blue
- Fitting to Hose Mate Type: Cutter
- Hose End Family: Swivel-Seal
- Hose End Series: 8
- Hose End Size: 16 AN
- Hose Size: 16 AN
- Material: Aluminum
- Pack Qty: 1
- Product Type: AN Female Hose End
- Reusable: Yes
- Socket Material: Aluminum
- Swivel: Yes
Additional Information
- 266
