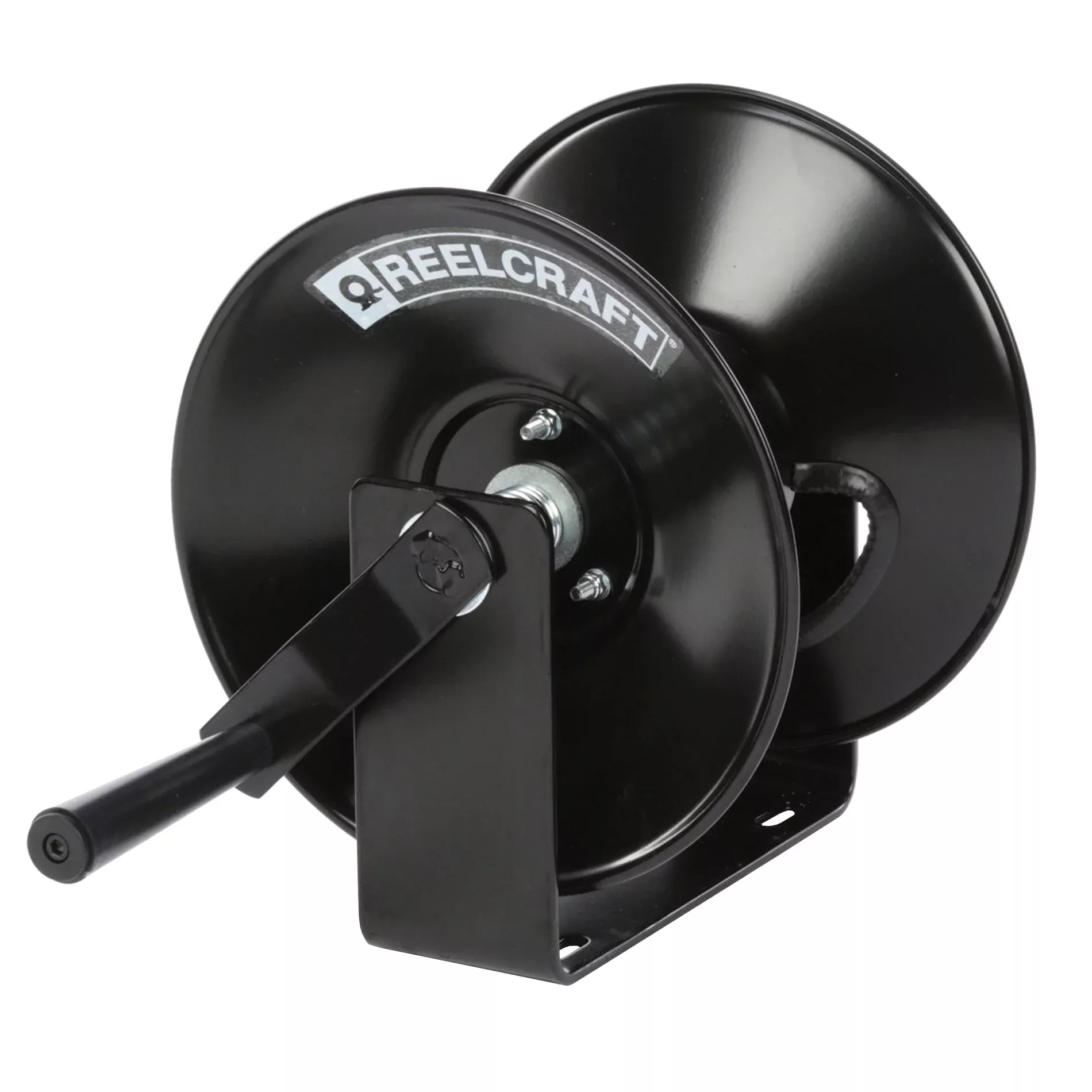

Reel Specifications and Dimensions
Additional information
| Weight | 16 lbs |
|---|---|
| Series |
CU |
| 3/8″ Hose Capacity |
100′ |
| Pressure |
300 psi |
| Inlet |
3/8″ NPT(F) |
| Reel Outlet |
3/8″ NPT(F) |
| Hose Included |
No |
| Max Temperature |
150 °F |
| UPC |
699567006329 |
| A | 11.5″ |
| B | 21.125″ |
| C | 10.5″ |
| D | 4″ |
| E | 11.125″ |
| F | 13.875″ |
| G | 2″ |
| H | 3.375″ |
Fluid Path Materials
| Internal Fluid Path | Steel |
| Swivel Assembly | Brass |
| Swivel Seal | Buna |
