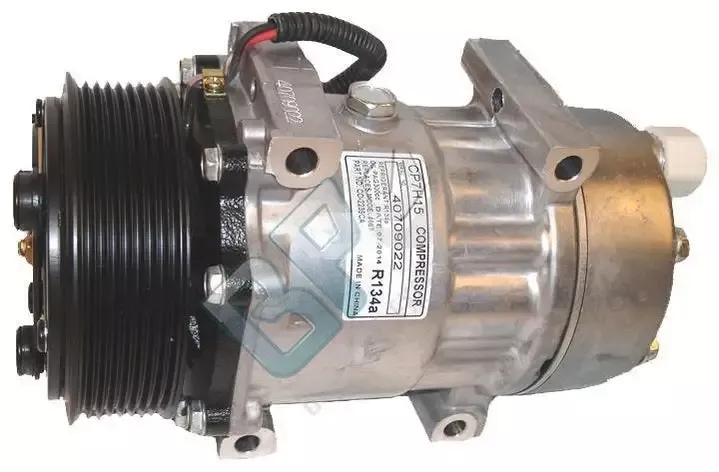

CO-2239CA COMPRESSOR SD7H15 4667 HOR PV8 12V DIR

CO-2239CA COMPRESSOR SD7H15 4667 HOR PV8 12V DIR
COMPRESSOR TYPE
7H15
BODY TYPE
DIRECT LONG
GROOVES
PV8
CLUTCH DIAMETER
119MM
VOLTAGE
12V
DIODE
YES
CYLINDER HEAD
KCA
OIL TYPE
PAG
OIL QTY (CC)
300CC
GAUGE LINE
61.55 MM
NOTES
FOR SUPER HD VERSION USE CO-2232CA
REFERENCES
4667
LE1675
ACC3112
ASSOCIATED PARTS
-013G
-015G
HEAD P/N
HP-2030
CLUTCH ASSEMBLY P/N
CA-204CW
DUST SHIELD P/N
HUB P/N
CH-208
PULLEY W/BEARING P/N
PB-243
COIL P/N
CC-211EW
CONNECTOR P/N
PT-4054
