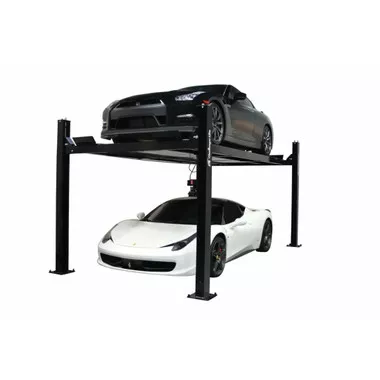

Challenger Lifts CL4P9S 4-Post Home Storage/Light Duty Service
CL4P7/CL4P9 Series
Challenger’s 7,000 lb. capacity and 9,000 lb. capacity 4-post garage lifts offer maximum versatility. These lifts can complement a home enthusiast’s garage or commercial storage application. They can also handle any light duty general service application. Choose between a wide range of optional accessories to customize your lift to exactly meet your needs.
Features
- 7,000 lb. lifting capacity or 9,000 lb. lifting capacity models available
- Up to 85.5” service rise height in top locked position
- Up to 80″ clearance in top locked position for storage application
- Multiple heights, lengths and widths available (9,000 lb. models only)
- Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
- Commercial-grade formed runways ensure a strong, stable unit
- Single-point manual lock release disengages column locks simultaneously
- Air not required for operation
- Anchoring not required to maintain ALI/ETL certification
- Larger columns and base plates add stability (9,000 lb. models only)
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drip trays (sold separately)
- Powder coat finish provides long-lasting durability
Specific Features of CL4P9S
| Model Number | CL4P9S |
| Lifting Capacity | 9,000 lbs. |
| Length Overall | 209.5” |
| Width Overall | 112.25” |
| Inside Columns | 95” |
| Between Columns | 160.5” |
| Height of Columns | 7’ .5” |
| Height of Runways (Floor to top of Runway) | 7” |
| Width of Runways | 20” |
| Width Between Runways | 38” |
| Rise Height (Top of Runway at top position) | 73.25” |
| Clearance Height (Storage) | 67.75″ |
| Max. Wheelbase* | 155” |
| Crossbeam Clearance Height | 68” |
| Motor | 1HP/2HP |
| Voltage (1 Phase Std) | 115v/230v |
| Speed of Rise (115v/230v) | 120/60 s |
| Min. Recommended Bay Size | 11’ x 22’ |
| ALI/ETL Certified | Yes |
| Colors Available | Black |
Additional Parts and Accessories
| Productivity Accessories | |
| Part No. | Description |
| RJ3.5 | Hand pump rolling jack – 3,500 lbs. capacity (CL4P7 only) |
| RJ4.5 | Hand pump rolling jack – 4,500 lbs. capacity (CL4P9 only) |
| RJ04-PK | Air/Hydraulic Pump Kit Converts RJ4.5 to air or hydraulic operation |
| CL4P9JT | Jack Tray – 4,500 lbs. capacity |
| CL4P9DTP | Plastic Drip Tray Set (set of 4) |
| CL4P9SP | Aluminum storage platform set (set of 4) (CL4P9 only). |
| CL4P9CS | Caster Set (set of 4) to make CL4P9 lifts portable |
| CL4P9SR | 36 in. Aluminum Ramp Set |
| CL4P9ER | 50″ Extended Aluminum Ramp Set |
| CL4P9PR | Steel Bolt-On Pivoting Ramp (CL4P9 only) |
Other Models
| Model Number | CL4P7 | CL4P9S | CL4P9X | CL4P9W |
| Lifting Capacity | 7,000 lbs. | 9,000 lbs. | 9,000 lbs. | 9,000 lbs. |
| Length Overall | 195.5” | 209.5” | 233.5” | 233.5” |
| Width Overall | 100.5” | 112.25” | 112.25” | 127.25” |
| Inside Columns | 92.125” | 95” | 95” | 110” |
| Between Columns | 147.5” | 160.5” | 184.75” | 185.75” |
| Height of Columns | 6’ 7.5” | 7’ .5” | 8’ .5” | 8’ .5” |
| Height of Runways (Floor to top of Runway) | 5.75” | 7” | 7” | 7” |
| Width of Runways | 20” | 20” | 20” | 20” |
| Width Between Runways | 38” | 38” | 38” | 38” |
| Rise Height (Top of Runway at top position) | 68.125” | 73.25” | 85.5” | 85.5” |
| Clearance Height (Storage) | 63′ | 67.75″ | 80″ | 80″ |
| Max. Wheelbase* | 141.5” | 155” | 179” | 179” |
| Crossbeam Clearance Height | 63” | 68” | 80” | 80” |
| Motor | 1HP/2HP | 1HP/2HP | 1HP/2HP | 1HP/2HP |
| Voltage (1 Phase Std) | 115v/230v | 115v/230v | 115v/230v | 115v/230v |
| Speed of Rise (115v/230v) | 120/60 s | 120/60 s | 120/60 s | 120/60 s |
| Min. Recommended Bay Size | 10’ x 20’ | 11’ x 22’ | 11’ x 22’ | 14’ x 22’ |
| ALI/ETL Certified | Yes | Yes | Yes | Yes |
| Colors Available | Black | Black | Black | Black |
