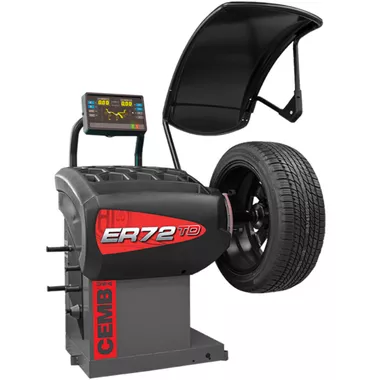

CEMB ER72 Autoadaptive OPB LED Manual Clamping Wheel Balancer (Manual Clamping)
The ER72 is a LED wheel balancer, incorporating the best features for exceptional performance, user-friendliness, efficiency, and time savings. Our innovative ergonomic wheel offset design provides enhanced access to the inner rim of commonly balanced wheels, simplifying the application of tape-on weights.
Features
- AutoAdaptive: For Each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel.
- One Plane Balancing: Enables to eliminate the static and dynamic unbalance by means of a single counterweight, indicating its exact application point on the inner side of the rim.
- 3D Laser Scan: Brighter laser that indicates where to put the stick-on weights, faster and more accurate reading of rim dimension, and doesn’t have any moving parts making it robust.
- Manual Locking: Accurate wheel centering by means of a quick locknut
- Electric Brake: Wheel locking system that locks the wheel in the correct position by means of an electromagnetic brake.
- Automatic Approach: Wheel automatically approaches within 15° of weight placement position.
Specifications
| Model | ER72 |
| Power Supply | 220V, 1ph |
| Wheel Clamping Type | Manual |
| Max. Rim Diameter | 30″ (765 mm) |
| Max. Rim Width | 20″ (510 mm) |
| Max. Tire Diameter | 42″ (1067 mm) |
| Max. Wheel Weight | 165 lbs. (75 kg) |
| Machine Weight | 310 lbs. (170 kg) |
