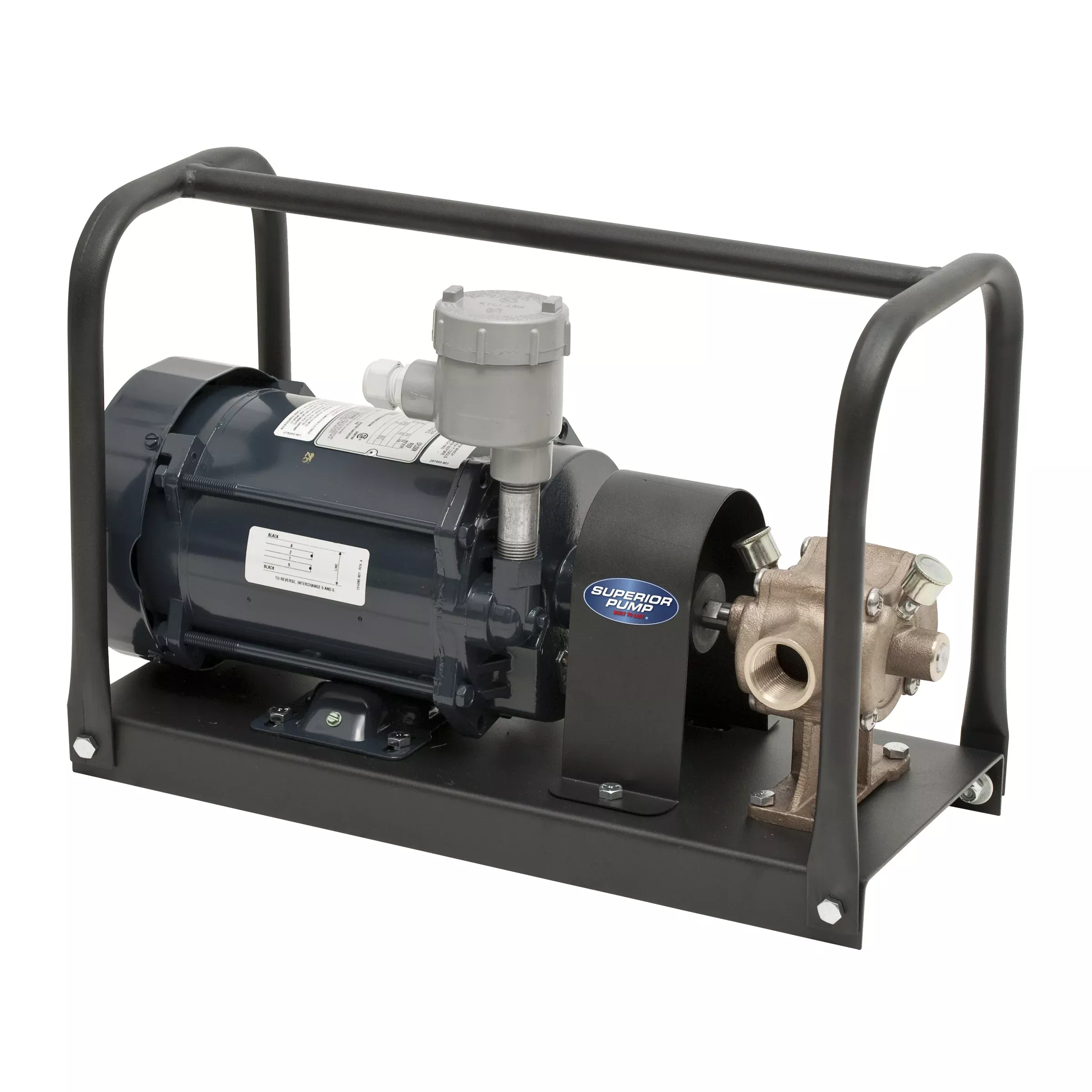

| • 1/2 HP – 120/240V explosion-proof motor • Complete kit for chemical, oil & explosive fluid transfer • Includes BP20X bronze pump • Includes two quick connect hose adapters • Rubber impeller provides for excellent • Handles most corrosive & flammable fluids* • Sturdy welded roll frame for ease of handling • Includes integral on/off switch and 25′ grounded power cord * Not recommended for ethanol use * See chemical chart for compatible liquids (click here) |
|||
| Technical Specifications | |||
| Model | 90150 | ||
| HP | 1/2 | ||
| Explosion Proof | Yes | ||
| Warranty | 1 Year |
BP20X Specifications
| • Loren Simer’s original bronze paddle pump • Made from 85/5/5/5 bronze • Will develop 30 psi • Stainless steel impeller shaft & fasteners • Handles liquids up to 180˚ F • Great for draining & filling heating and hot water systems • Minimum recommended motor size: 1/3 hp 1725 RPM • “X” type impeller handles most flammable & corrosive liquids* * See chemical chart for compatible liquids * Not recommended for ethanol use |
|||
| BP20X Technical Specifications | |||
| Suction & Discharge Size | 3/4″ | ||
| Impeller Shaft Size | 1/2″ | ||
| Construction | 85/5/5/5 Bronze | ||
| Impeller | “X” Type | ||
| Impeller Warranty | 90 Days | ||
| Pump Warranty | 1 Year |
Download Owner’s Manual
