- Made in the USA (i)
- FRP Construction / Built like a Tank (i)
- Red clear walls (i)
- 8-sided walls for 45° and 90° piping
- 56″ø, 48″ø or 42″ø diameter sump
- 32”ø or 36”ø diameter reducer

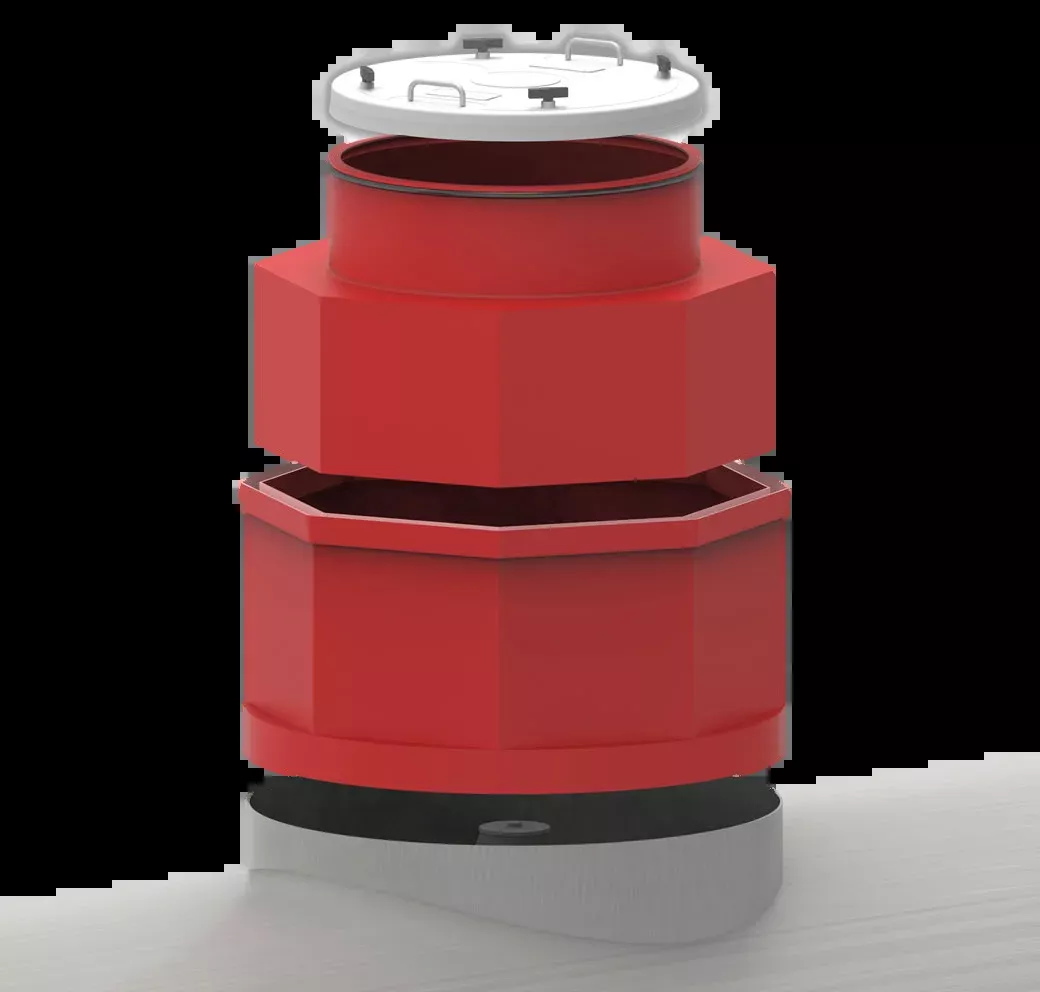

- Round-collar mount split sump
- Pour-in-place seal at center with 2” deep channel
- Lamination seal at bottom interface to round collar
- Height is adjustable in the field
- Includes our new SNAP-LOCK cover
- UL Listed
- FDEP Approved: EQ 615
- Third Party Approved
- 30 Year Warranty (i)
Specs
- Material: Translucent red tank-spec fiberglass (i)
- 56″ø, 48″ø or 42″ø octagon with round interface at bottom
- 10” high 32”ø or 36”ø reducer
- Standard heights: 42” total (24” base), 48” total (24” base), 60” total (24” base), 72” total (24” base)
- Contact us to customize this product (i).
- SL = The new submersible water-tight SNAP-LOCK cover.
Options
- Recommended: F-Series all-fiberglass entry fittings for FRP pipe, PE pipe or conduit.
- Optional upgrade of 32”ø reducer to a 36”ø reducer (i)
- Optional oversized 56”ø diameter octagon sump
- Optional 42”ø collar mount interface for a 48”ø tank sump
- Optional fill covers for Phil Tite, CNI and OPW including quad cover
- Optional 4″ø or 8″ø PVC inspection port for cover (depends on cover)
- Option to customize this product to meet your needs (i)
