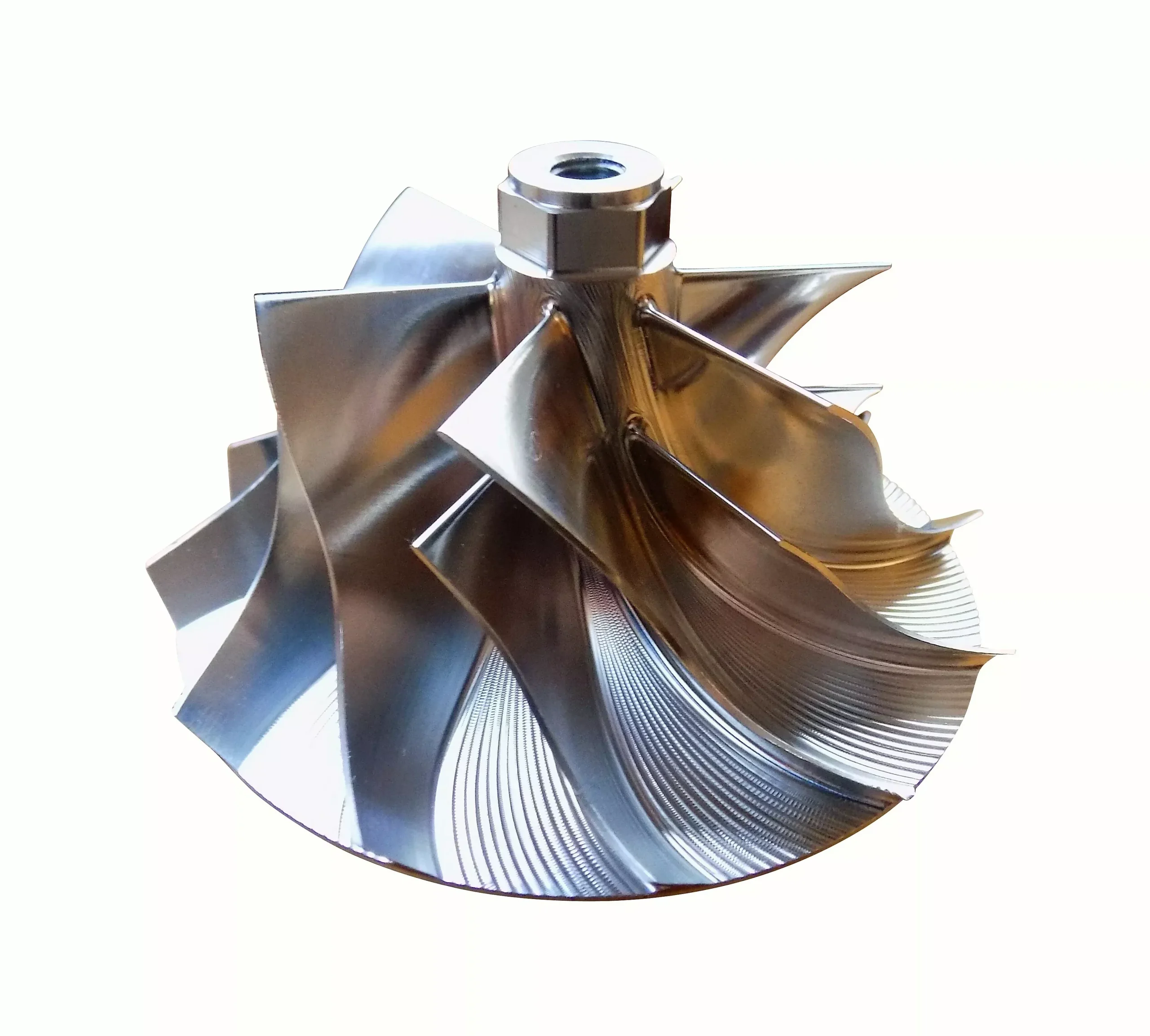

Billet Compressor Specs
Inducer: 59.1 mm
Exducer Base: 82.0 mm
Extended Tip: 87.3 mm
Primary Tip Height: 34.8 mm
Secondary Tip Height: 22.7 mm
Weight: 117 Grams
Nose Width: 14 mm Hex
Blades: 6/6
Extended Tip
Pre-balanced
Reinforced Blade Base
Slim Nose Increases Blade Size
Larger Blades for Increased Flow
Increased Throttle Response
Note: The threads on the compressor wheel are left hand. Turn left to tighten and right to loosen. Torque specification: 10 Ft-Lbs with blue thread locker.
Fits: 2003 F250, F350, F450, F550 and Excursions. *Please measure your inducer to confirm fitment as 03 engines could have an 04+ turbo installed.
