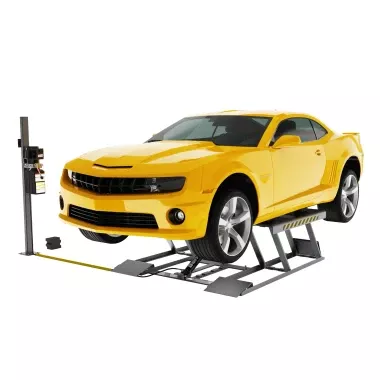

Bendpak LR-60 6,000-lb. Capacity, Low-Rise Lift
Speed up low-rise lifting work with the LR-60, a 6,000-lb. capacity car lift designed for wheel, brake, suspension, body and general service tasks. Its compact platform layout gives shops and garages a strong solution for raising vehicles to a practical working height without tying up a full-rise lift. It is a useful fit for tire shops, quick-service bays, detailers and repair facilities.
Features
- Portable version available
- Electric / hydraulic power system
- Multi-position safety locks
- Rubber lifting blocks included
- Dropped cross bar for added clearance
- Heavy-duty steel channel frame
Specifications
| Lifting Capacity | 6000 lb |
| 1st Locking Position | 15 in |
| 2nd Locking Position | 20.25 in |
| 3rd Locking Position | 23.5 in |
| Max Lifting Height | 23 in |
| Max Lifting Height with Blocks | 26 in |
| Lowered Height | 3.5 in |
| Lifting Time | 45 seconds |
| Pad Length | 53 in |
| Pad Width | 18 in |
| Length | 81 in |
| Width Between Platforms | 34.75 in |
| Horsepower | 1.5 HP |
| Voltage | 110V / 50/60 Hz / 1-Phase |
| Sound Level | 40 dBA |
| Shipping Dimensions | 83 x 73 x 21 in |
| Shipping Weight | 940 lb |
| Shipping Method | LTL |
| Offload Requirement | Liftgate |
WARNING: California Prop 65
Downloads
Flyer
Manual
**Bendpak charges taxes to California**
***It is the buyer’s responsibility to unload the freight at their location.
Warranty Information
