Name: Bendpak HD-9 9,000-Lb. Capacity Standard Width 4 Post Car Lift
Brand: trackcarparts.com
SKU: BP-5175861
Price: 2555.41 USD
Availability: InStock

Bendpak HD-9 9,000-Lb. Capacity Standard Width 4 Post Car Lift

Original price was: $3,657.00.Current price is: $2,555.41.

Sale!

SKU: BP-5175861 Category: hot sale

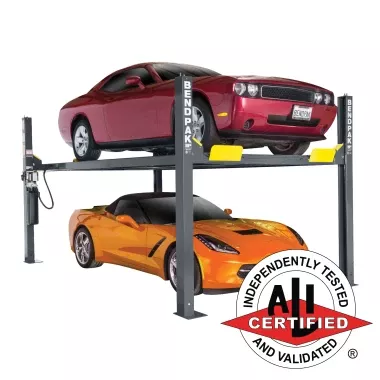

Bendpak HD-9 9,000-Lb. Capacity Standard Width 4 Post Car Lift

The BendPak HD-9 Four-Post Lift is one of the most popular and versatile lifts in the BendPak lineup because it hits the sweet spot for capacity, footprint, storage, and service capability. With a 9,000-lb. lifting capacity, freestanding design, and open-center platform, the HD-9 is built for home garages, professional service bays, collectors, and serious DIY users who want one lift that can handle parking, maintenance, and everyday shop work. BendPak engineered the HD-9 with galvanized steel lifting cables, a single hydraulic cylinder, internal safety systems, and low-deck runways to deliver smooth operation and long-term confidence. For most cars, light trucks, and garage projects under 9,000 lbs., this standard-width four-post lift brings serious function without jumping into a larger commercial footprint.

Features

9,000-lb. maximum lifting capacity.
CE Approved and Certified.
Meets or exceeds the standards prescribed by European Standard EN-1493.
Freestanding design.
Perfect for parking, storage and service.
Runways accommodate narrow and standard vehicles.
Runways include rail-kit for optional accessories.
Electric / hydraulic power system.
Single hydraulic cylinder mounted underneath runway.
Fully enclosed lifting cables, safety locks and sheaves.
Internal anti-sway slider blocks in each column.
Oversized self-lubricating cable rollers.
Features heavy-duty 3/8″ aircraft cable.
Rugged 1.25″ roller axles.
Multi-position safety locks in each column.
Adjustable lock ladders.
Runways feature non-skid surface.
Push-button pneumatic safety release.
Independent backup slack-cable safety latches.
Customizable power unit location.
Removable approach ramps for additional drive-under clearance.
Longer approach ramps for low-ground clearance vehicles.
Optional drive-thru ramps available (*Sold Separately).
Optional drip trays available (*Sold Separately).
Optional solid deck available to increase storage capacity (*Sold Separately).
Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45).
ETL Approved.

Specifications

Lifting Capacity	6000 lb
A Min Runway Height	5 in
B Max Rise	70 in
C Max Lifting Height	75 in
D Width	110.25 in
E Outside Length	174 in
F Overall Length	200.5 in
G Height	88 in
H Inside Columns	100.25 in
I Drive-Thru Clearance	86.5 in
J Runway Width	19 in
K Runway Length	158.25 in
L Width Between Runways	35 – 41 in
M Runway Centerline	56.75 – 63 in
N Outside Edge of Runways	75.75 – 82 in
Rated Wheelbase Capacity	115 in
25% Capacity	70 in
50% Capacity	85 in
75% Capacity	100 in
Locking Positions	14
Locking Spacing	4 in
Horsepower	2 HP
Voltage	208-230V / 60 Hz / 1-Phase
Sound Level	45 dB
Shipping Dimensions	22 x 168 x 32 in
Shipping Weight	1616 lb
Shipping Method	Flatbed
Offload Requirement	Forklift
