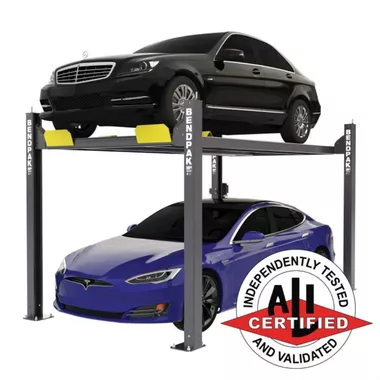

BendPak HD-7P 7,000-lb. Capacity Short Runways Extra-Tall 4 Post Lift
7,000-lb. Capacity / Narrow Car Lift / High Rise
The BendPak HD-7P Four-Post Lift is the narrow high-rise parking lift for garages that need more vehicle storage without wasting floor space. With a 7,000-lb. lifting capacity, short runways, and a compact footprint, the HD-7P helps homeowners, collectors, and commercial parking environments make better use of vertical space while keeping the installation clean and organized. This is the HD-7 model for users who want BendPak four-post lift performance in a tighter layout. It is built to park, store, and service vehicles under 7,000 lbs., giving garages a polished parking solution that looks sharp and works hard without demanding a wide bay to prove it.
Features
- 7,000-lb. maximum lifting capacity.
- High lift with short runways.
- Electric / hydraulic power system.
- Single hydraulic cylinder mounted underneath runway.
- Internal anti-sway slider blocks in each column.
- Oversized self-lubricating cable rollers.
- High-speed lifting.
- Features heavy-duty 3/8″ aircraft cable.
- Rugged 1.25″ roller axles.
- Multi-position safety locks in each column.
- Adjustable lock ladders.
- Ramps feature non-skid surface.
- Push-button pneumatic safety release.
- Optional 4,500-lb. capacity rolling jack available (Model RJ-45).
Specifications
| Lifting Capacity | 7000 lb |
| A Min Runway Height | 5 in |
| B Max Rise | 82 in |
| C Max Lifting Height | 85.75 in |
| D Width | 100.25 in |
| E Outside Length | 174 in |
| F Overall Length | 200.5 in |
| G Height | 100 in |
| H Inside Columns | 90.25 in |
| I Drive-Thru Clearance | 76.5 in |
| J Runway Width | 19 in |
| K Runway Length | 158.25 in |
| L Width Between Runways | 34.5 in |
| M Runway Centerline | 56.5 in |
| N Outside Edge of Runways | 75.5 in |
| Rated Wheelbase Capacity | 115 in |
| 25% Capacity | 70 in |
| 50% Capacity | 85 in |
| 75% Capacity | 100 in |
| Locking Positions | 17 |
| Locking Spacing | 4 in |
| Horsepower | 2 HP |
| Voltage | 208-230V / 60 Hz / 1-Phase |
| Sound Level | 45 dB |
| Shipping Dimensions | 22 x 169 x 32 in |
| Shipping Weight | 1756 lb |
| Shipping Method | Flatbed |
| Offload Requirement | Forklift |
*Specifications subject to change without notice.
Optional Accessories (*Sold separately)
| WSA-100 | DP-30 |
