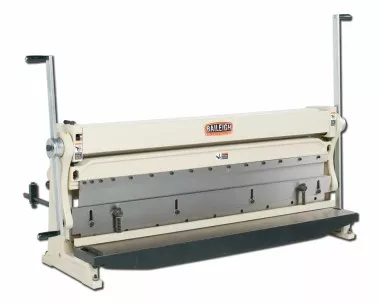

Baileigh SBR-5220 Shear Brake And Roll

Baileigh SBR-5220 Shear Brake And Roll

Want to roll, bend, and cut 4’ x 8’ sheets in a small shop? This 3-in-1 machine saves space. The heavy steel frame will keep the SBR-5220 accurate at full capacity for many years.

*Recommended for: Small shops, especially maintenance and R&D, that need to work with standard 4-foot sheets of metal.

Looking for a smaller shear brake roll? This machine is also available in a 30”-wide version and a 40”-wide model.

Need a 52” shear brake roll with a larger capacity? The SBR-5216 can handle 16 gauge mild steel.

Features

• 52” bed width lets you work with 4-foot metal sheets.
• Maximum capacity of 20 gauge mild steel and 16 gauge aluminum across full working width for all functions.
• Slip roll portion is on top, manual press brake in the middle, and shear on the bottom.
• Manual slip roll has hardened bottom and top rolls.
• 3 grooves can roll wire and round rod.
• 2” minimum diameter for roll forming.
• Manual press brake bends up to 90° and includes a hardened single-V bottom die.
• You can rearrange the movable, hardened finger dies on the upper beam to make boxes and pans in varying sizes.
• Crowning feature adjusts the camber of the tooling, so you can make a crisp bend in the middle of the machine, as well as the edges.
• On the manual shear, spring-loaded hold-downs ensure a consistent cut across the entire width of the machine.
• Hardened and reversible shear blades on bottom and top will remain sharp.
• Back gauge helps you create repeatable parts.
• Large handles turn 360° to put each machine through a full cycle.
• Double-sided handles allow 2 people to apply force, reducing the strain of operation.
• Weighs 860 lbs. with durable steel construction.

Specifications

*Specifications subject to change without notice.
