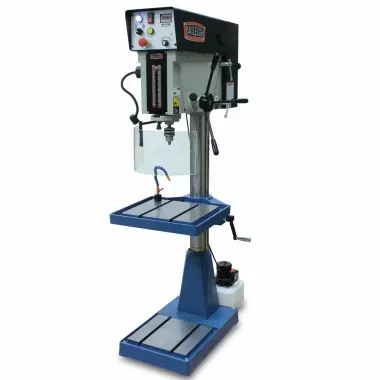

Baileigh DP-1200VS Variable Speed Drill Press
Built to last for years, the DP-1200VS floor drill press is an economical option for any shop. With a 22” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
Features
- 2 hp motor runs on just 220 volts of single-phase power.
- Tackles a maximum drilling capacity of 1-1/16” mild steel.
- Heavy duty spindle transfers power to the 3 Morse taper tooling .
- Speed potentiometer dial controls powerful inverter-driven head.
- Variable drilling speed, ranging from 10 to 2250 rpm, lets you choose the right setting to suit your application.
- Digital readout displays actual spindle rpm, ensuring precise results time after time.
- Features an auto-reversing tap function with up to .1/2” capacity.
- Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.
- Base and 16-3/4” x 19” table are made of a heavy iron casting to increase rigidity.
- Very large .625″ T-slots let a vise or fixture securely hold your material.
- Movable coolant system, with magnetic fixture, sprays out where you need it to extend drill bit and tap lifespan.
Specifications
| Model Number | DP-1200VS |
| Base Size (In.) | 25-3/4″ x 16-1/2″ |
| Column Diameter (In.) | 4.52″ |
| Drilling Capacity (In.) | 1.25 |
| Drilling Capacity Mild Steel (In.) | 1-1/16″ |
| Input Power | 220V / 1-phase |
| Quill Diameter (In.) | 3″ |
| Shipping Dimensions (L x W x H) (In.) | 60 x 44 x 82 |
| Swing (In.) | 22″ |
| Table Slots (In.) | .625″ |
| Weight (Lbs.) | 650 |
*Specifications subject to change without notice.
