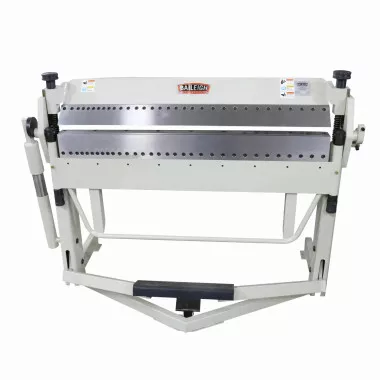

Baileigh BB-5016F-DS Reversible Finger Brake
The BB-5016F-DS sheet metal bending brake incorporates segmented fingers on the top and lower lifting beams to make unusual bends that a standard box brake can’t do.
*Recommended for: Making many sizes and shapes of tanks, pans, boxes, and much more.
Features
- 50” length.
- 16-gauge mild steel maximum capacity box and pan brake.
- You can clamp the material with the foot pedal, so that both hands are free for positioning the sheet metal.
- Segmented fingers on the lower lifting beam let flanges and flaps hang down while still allowing you to get close to the bend line.
- Adjustable stop rod helps you make repeatable parts for production runs without difficulty.
- Simple blade gap adjustment lets you work on various gauges of sheet metal.
- Spring-loaded cylinder assists in lifting the apron, saving effort for the operator.
- Hardened fingers and bending die will last through years for productive use.
Specifications
| Model Number | BB-5016F-DS |
| Maximum Box Depth (In.) | 2.5″ |
| Mild Steel Capacity (Gauge) | 16 |
| Style (Type) | Reversible Finger Brake |
| Shipping Dimensions (L x W x H) (In.) | 68 x 28 x 52 |
| Input Power | Manual |
| Max. Bend (Deg.) | 0 – 135° |
| Overall Length (In.) | 50” |
| Weight (Lbs.) | 1000 |
*Specifications subject to change without notice.
