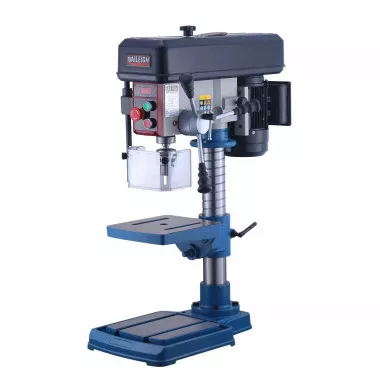

Baileigh 1228211 DP-3814B 14” Bench Top Drill Press
Looking for a small, compact, bench top drill press that has the power to do any task you ask of it at an economical price? The DP-3814B 14″ swing is just what you are looking for. This drill press runs smoothly even at full capacity—and will do so for years at your shop.
Features
- 1/2 hp motor requires 110-volt power and will work at virtually any shop or site
- Belt-driven head drills a maximum capacity of 5/8” steel
- Spindle speeds in the range from 250 to 2900 rpm to suit your application
- 2-3/4″ wide steel column eliminates flexing even when drilling at full capacity
- Easy to adjust table and head position with its clever screw type column
- Rigid cast iron base and table add strength to the drill’s structure
- The table even tilts left or right to 45 degrees
- Includes a safety shield around the drill head to protect you
Specifications
| Model Number | DP-3814B |
| Base Size (In.) | 18-3/4″ x 12-1/2″ |
| Chuck Size (In.) | .03″ – .625″ |
| Column Diameter (In.) | 2-3/4 |
| Drilling Capacity Mild Steel (In.) | 5/8 |
| Headstock Movement | Yes (360 degrees) |
| Input Power | 110 Volt |
| Number of Spindle Speeds | 5 |
| Overall Dimensions (L x W x H) (In.) | 26 1/4 x 13 x 38 1/4 |
| Quill Diameter (In.) | 1.85″/ 47mm |
| Range of Spindle Speeds (RPM) | 250-2900 |
| Shipping Dimensions (L x W x H) (In.) | 48 x 31 x 16 |
| Speeds | 16 |
| Spindle Distance to Table (Max.) (In.) | 11-1/2″ |
| Spindle Taper | B16 |
| Spindle Travel (In.) | 37316 |
| Swing (In.) | 14″ |
| Table Material | Cast Iron |
| Table Size (In.) | 9″ x 10-1/4″ |
| Table T-Slot (In.) | 2 @ .531″ |
| Table Tilt (Deg.) | L or R 45 Degrees |
| Weight (Lbs.) | 194 |
| Working Load Limit (Lbs.) | 132 |
| Distance From Spindle To Base (In.) | 19-5/8″ |
| Shipping Weight (Lbs.) | 210 |
*Specifications subject to change without notice.
