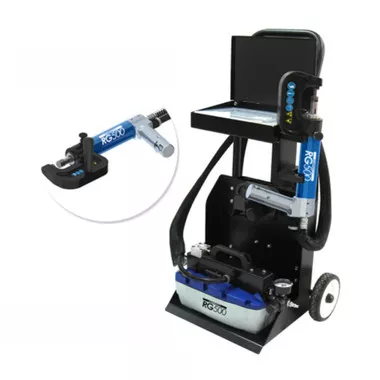

AMH Compuspot RG500 Pneumatic & Hydraulic Rivet Gun
The ideal tool for riveting operations on metal sheet used by major car manufacturers.
Features
- Designed to be used on aluminium, plastic, composite and steel (HLE, THLE, UHLE, Boron, etc).
- Can also be used for the rivet removal.
- Does not generate heat.
- Does not damage or cause weakening of metal.
- Types of compatible rivets: self-piercing and flow-form.
- Compact, lightweight, and easy to use rivet gun.
- Equipped with a heavy-duty air-hydraulic pump.
- A joining force adjustable from 20 to 65 kN (4,500 to 14,600 lbf) depending on the rivet size.
- Maximum operating pressure 700 bar (10,000 PSI).
Specifications
| Pneumatic Pressure | 2.5 – 7 Bar (36 – 100 Psi) |
| Hydraulic Pressure | 250 – 700 Bar (3.600 – 10.000 Psi) |
| Clamping Force | 20 – 65 kN (4,500 – 14,600 lbf) |
| Clamping Stroke | 25.4 mm (1”) |
| Outside Diameter of the Cylinder | 51 mm (2”) |
| Cylinder Weight | 4 – 6 Kg (9-13 lbs) |
| Sound Level | 70 dBA |
| Trolley dimensions (L x l x h) | 470 x 356 x 864 mm (18-1/2″x 14″x 34″) |
