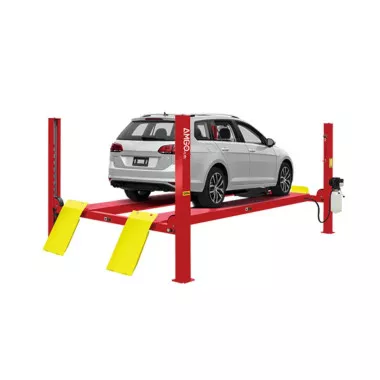

AMGO Hydraulics PRO-12 12000 Lbs 4-Post Lift
The commercial-grade Pro-12 is the flawless choice for your daily quick servicing of cars, SUVs, pickups and Vans that can handle up to 12000 lbs. It features the stepless width adjustment technology to fit various wheel tracks, and its heavy-duty construction offers rugged durability and ensures maximum safety. It’s your ideal service tool for both garages and service shops.
Features
- 12,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.
Optional Rolling Jacks Sold Separately
- J6H 6,000lbs manual control
- J6A 6,000lbs pneumatic pump
More choices Sold Separately
- Optional led lights: No. 40103
- Optional air line kit: No. 40102
Specifications
| Model | PRO-12 | |
| Lifting Capacity | 12,000 Lbs | |
| Lifting Time | 63 s | |
| Overall Length (Inc Ramps) | A | 236 11/16″ |
| Overall Length (No Ramps) | B | 200 3/4″ |
| Overall Width | C | 126 5/16″ |
| Width Between Columns | D | 112 1/4″ |
| Max.Lifting Height | E | 74″ |
| Max. Lock Height to top of runway | 70 7/8″ | |
| Overall Height | F | 86″ |
| Minimum Height | G | 6 11/16″ |
| Max.Underneath Height | H | 68 1/2″ |
| Max. Lock Underneath runway | 65 3/8″ | |
| Drive-Thru Clearance | I | 98 3/8″ |
| Width Between Runways | J | 43 5/16″ Min. 39 3/8″~ Max. 51 3/16″ |
| Outside Edge of Runways | K | 83 5/16″ Min. 43 3/8″~ Max. 91 3/16″ |
| Gross Weight | 2,337 Lbs | |
| Motor | 2.0 HP, 220V / 60Hz, Single phase |
