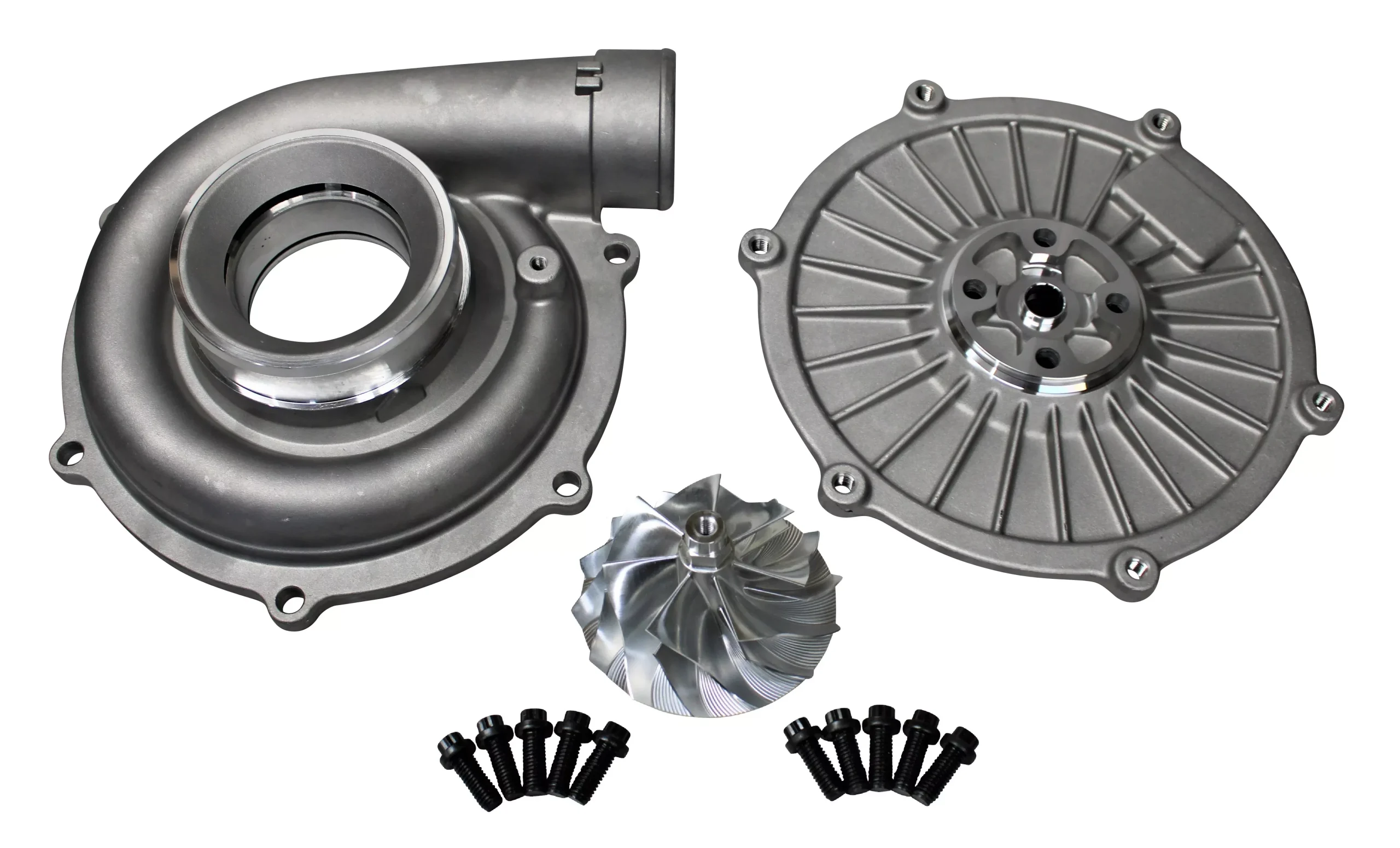

Turbocharger front cover kit for 2003-2007 6.0l Garrett Turbos.
Lightweight 6/6 Billet Wheel
Increase airflow
Lower EGTs
Raw Aluminum Cover
New Mounting Hardware Included
63.5mm Inducer: Recommended for Towing & Heavy Hauling
Billet Compressor Specs
Inducer: 63.4 mm
Exducer Base: 88.2 mm
Extended Tip: 94 mm
Primary Tip Height: 42 mm
Secondary Tip Height: 30 mm
Weight: 142 Grams
Nose Width: 14 mm Hex
Blades: 6/6
Extended Tip
Pre-balanced
Pair it with our 72.5×66.5mm 10 blade turbine wheel and 15mm vanes for a loud whistle! Please see our “complete rebuild kit” listing.
You may need our “03” style turbine housing that accepts the larger 72.5×66.5mm turbine wheel and 15mm vanes depending on the core you are building.
Fits: 2003-2007 F250, F350, F450, F550 and Excursions. Also 2005-2010 E-Series Vans with the 6.0L Powerstroke diesel engine.
We strongly suggest fully rebuilding your turbo (new seals, bearings, oil supply & drain tubes) while you have it out. We only offer warranties on our full rebuild kits.
